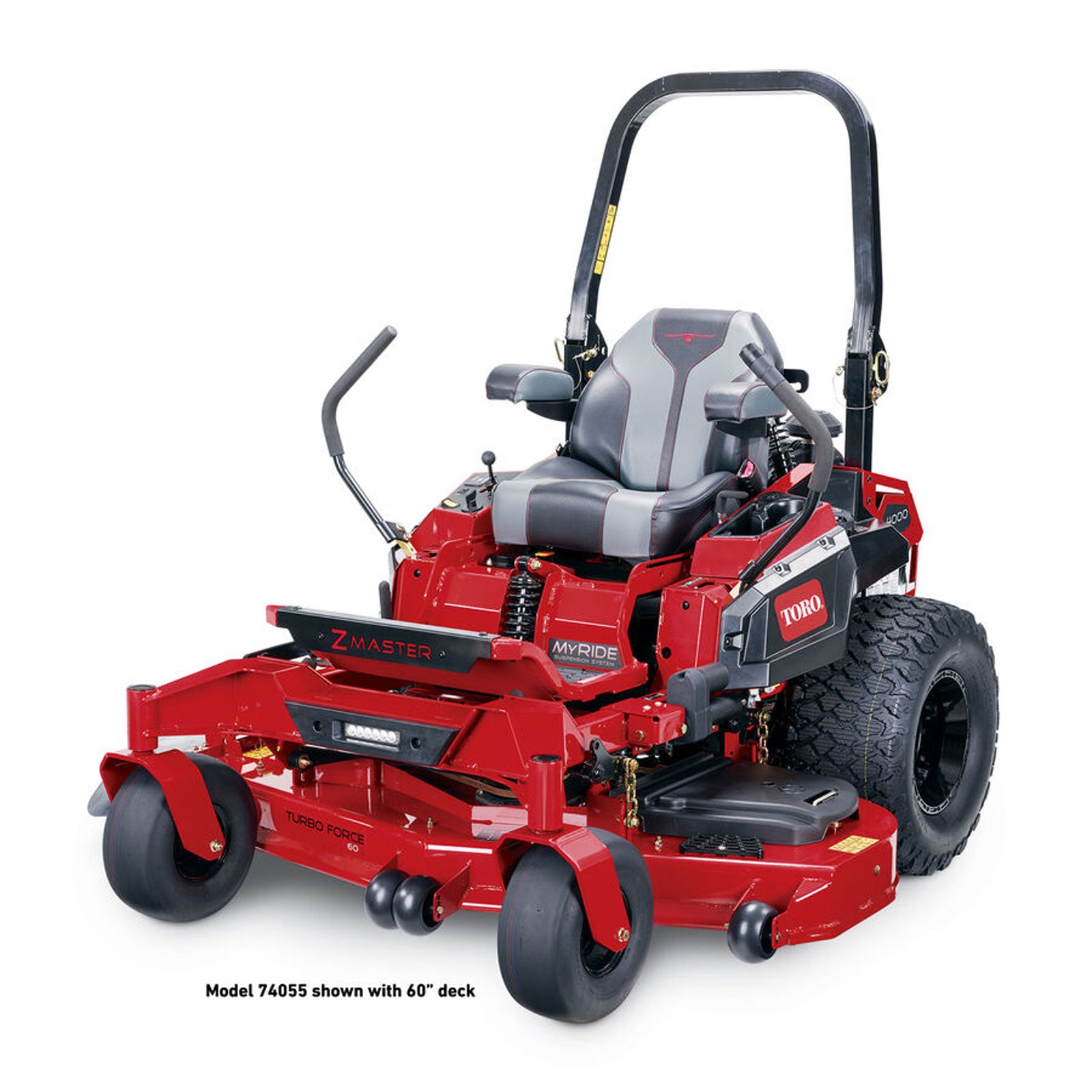

4000 Series MyRIDE® HDX 52 in. (132 cm) 31 hp 999cc Model: 74055 with 60" deck

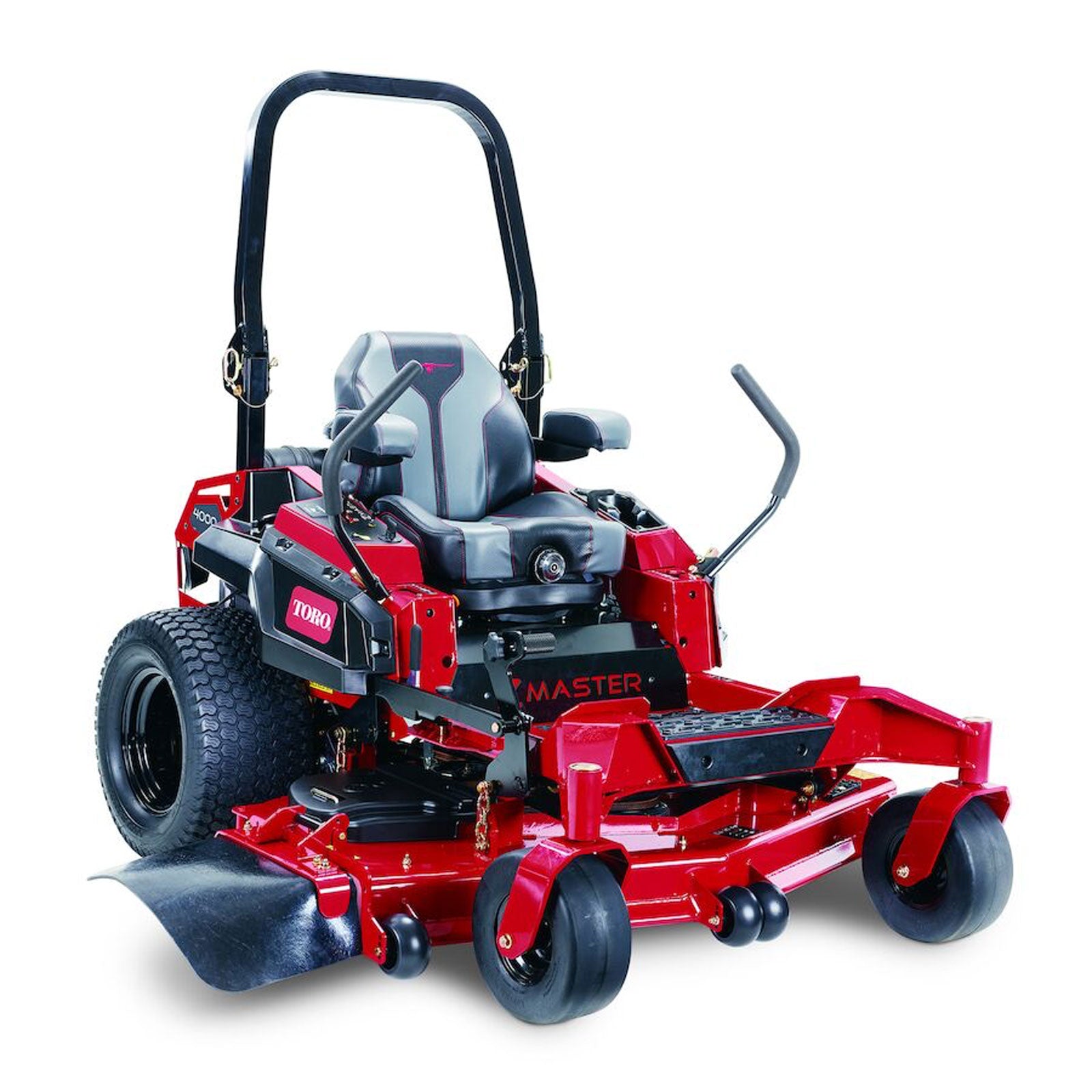

4000 Series MyRIDE® HDX 52 in. (132 cm) 31 hp 999cc Model: 74052

4000 Series

SKU: 74052

Toro Z-Master® 4000 Series MyRIDE HDX 52" 31 hp Gas Zero Turn Mower

By Toro

$13,599.00 USD

Model

Description

Kick productivity and comfort up a notch with the Z-Master 4000 HDX with MyRIDE® Suspension System. Power through your day with a powerful 31 hp* Kawasaki FX921V engine, heavy-duty commercial grade hydros, 26 in. Voodoo Trac™ Tires, and a 52 in. 7-Gauge High-Strength Steel TURBO FORCE® cutting deck. Ride in comfort with the customizable MyRIDE Suspension System featuring up to 3 inches of platform travel to save your body from tough terrain. Plus, with the hour meter, USB ports, phone holder, and cup holder, you’ll have everything you need from the comfort of the deluxe suspension seat to make long days feel shorter.

Save your body from the toughest terrain with the MyRIDE Suspension System featuring up to 3 inches of travel.
Survey the task from a higher-vantage-point with the 26" Voodoo Trac™ drive tires.
Powerful illumination for after-hours work with LED headlights.
Go full throttle and have confidence in the precise cut from our TURBO FORCE® deck with I-beam front end paired with tubular chassis and bumper.
Keep your phone and drink at arm's reach.
Keep tabs on time and keep devices powered up with the hour meter and USB ports.

Specifications

Adjustment
MyRIDE Suspension System Adjustability

Air Filter
Heavy-Duty Donaldson® Canister-Style Air Cleaner

Blade Tip Speed
18,500 ft/min / 5,638 m/min

Blades
0.204 in. (0.5 cm) heat-treated steel

Box Dimensions
91 in. x 70 in. x 52.5 in. / 231.1 cm x 177.8 cm x 133.4 cm

CARB Compliant
Not CARB Compliant

Caster Tires
15 in. x 6.5 in. - 6 in. (38 x 16.5 - 15.2 cm) Pneumatic

Clutch
Electromagnetic

Comfort Platform
MyRIDE® Suspension System

Deck Design
52" (132.1 cm) 7-Gauge High-Strength Steel TURBO FORCE®

Deck Material
7 Gauge High-Strength Steel

Deck Size
52 in / 132 cm

Discharge Chute
Rubber

Drive Tires
Voodoo Trac 26 in. x 10.5 in. - 12 in. (66 cm x 26.7 cm - 30.5 cm)

Engine
31 hp* Kawasaki FX921V (999 cc) with Heavy-Duty Donaldson® Canister-Style Air Cleaner

Engine Brand
Kawasaki

Engine Displacement (cc)
999 cc

Engine Horsepower
31.0 hp

Foot Operated Height of Cut
Standard

Forward Ground/Transport Speed
Up to 12.0 mph / 19.3 kph

Fuel Capacity
10 gal. / 37.8 L / 40 Qt.

Fuel Type
Gasoline

Height of Cut
1.5 - 5.5 in. / 3.8 - 14.0 cm

Hour Meter
Standard

Lighting
LED Headlights

Platform Travel
3.0 in / 7.6 cm

Product Features
Electric Start, Foot Operated Height of Cut, Gas Powered, Hour Meter, MyRIDE Suspension System

Product Type
Zero Turn Mowers

Roll-Over Protection System (ROPS)
Folding; Standard

Seat
Deluxe Seat with Armrests

Shocks
1 Front Center / 2 Rear

Spindle Bearings
Maintenance-free

Spindle Housing
9 in / 2.9 cm Diameter Aluminum

Start Type
Electric

Steering Controls
1.4" (3.6 cm) Diameter Grips; Adjustable, Dampened

Transmission
ZT-4400 Integrated Pumps and Wheel Motors

Weight
1,274 lbs / 577.9 kg

View details

Toro Z-Master® 4000 Series MyRIDE HDX 52" 31 hp Gas Zero Turn Mower

Toro Z-Master 4000 Series Brochure

MyRIDE® Suspension System

Save your body from the toughest terrain with the MyRIDE Suspension System.

Electronic Deck Lift Assist

Electronic deck lift assist in dialing in your desired cut height.

26" Voodoo Trac™ Drive Tires

Get the ultimate in agressive tread and styling and survey the task from a higher-vantage-point with 26" Voodoo Trac™ Drive Tires.

Up to 12 MPH

Get more done with ground speeds up to 12 MPH without reducing cut quality.

Rubber Discharge Chute

Trim close without damaging landscape structures or your chute.

Dual Capture Anti-Scalp Rollers

Intelligently engineered dual capture anti-scalp rollers ensure the highest quality of cut in the harshest terrain you can throw at it.

LED Headlights

Powerful illumination for after-hours work.

Deck Step Plate

Keep your grip and remove excess mud from your shoes with a deck step plate.

Phone and Cup Holder

Keep your phone and drink at arm's reach with built-in phone and cup holders.

TURBO FORCE® Cutting Deck

Enjoy years of reliable performance with a fully tubular frame and 7-gauge steel deck.

Clear Sightline to Rear Tires

Clear sightline to rear tires for enhanced control so you can clear a path without tire spin.

USB Ports

USB ports to help you stay charged on the job.
