4000 Series HDX Pro XL 72 in. (183 cm) 35 hp 999 cc Model 74022

4000 Series

SKU: 74022

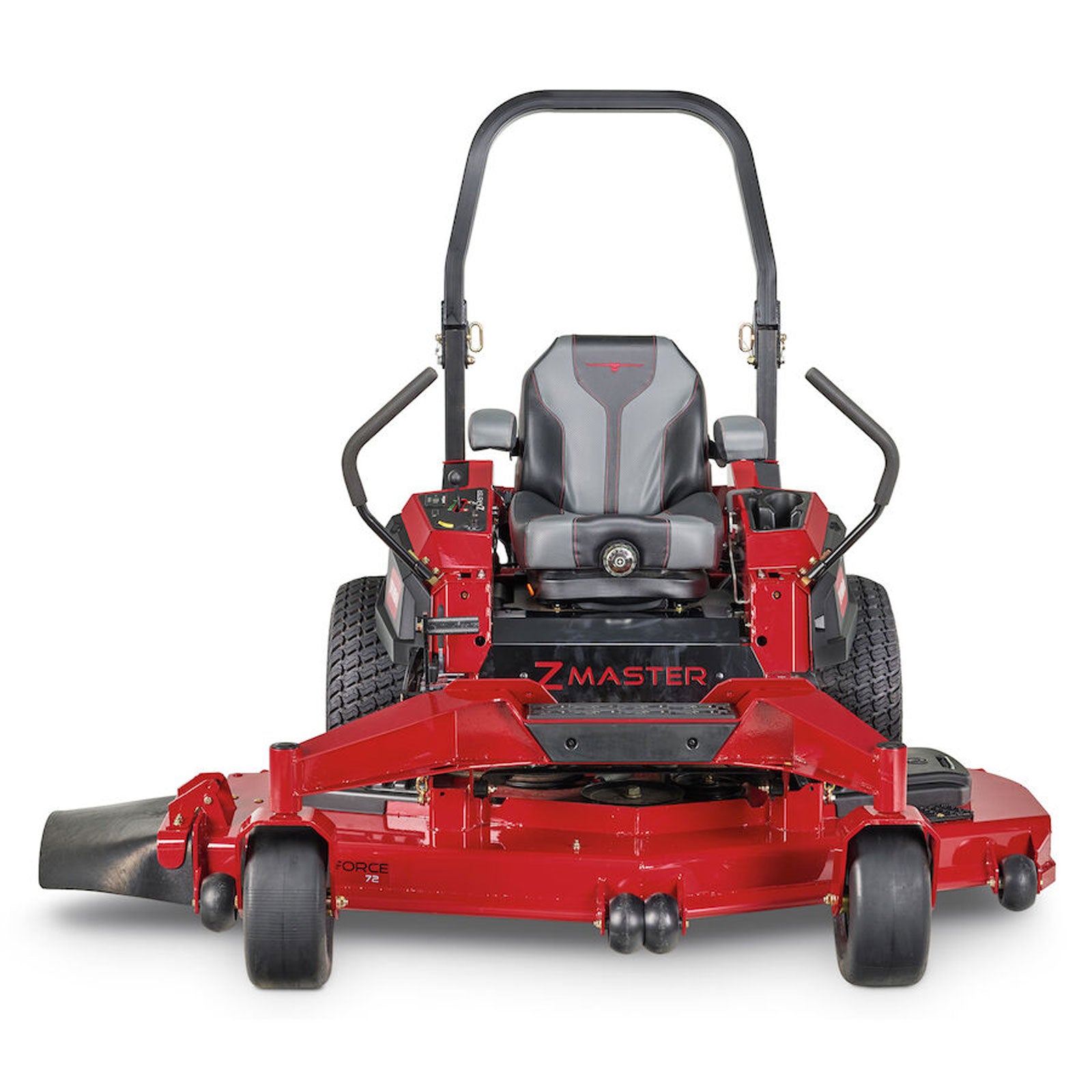

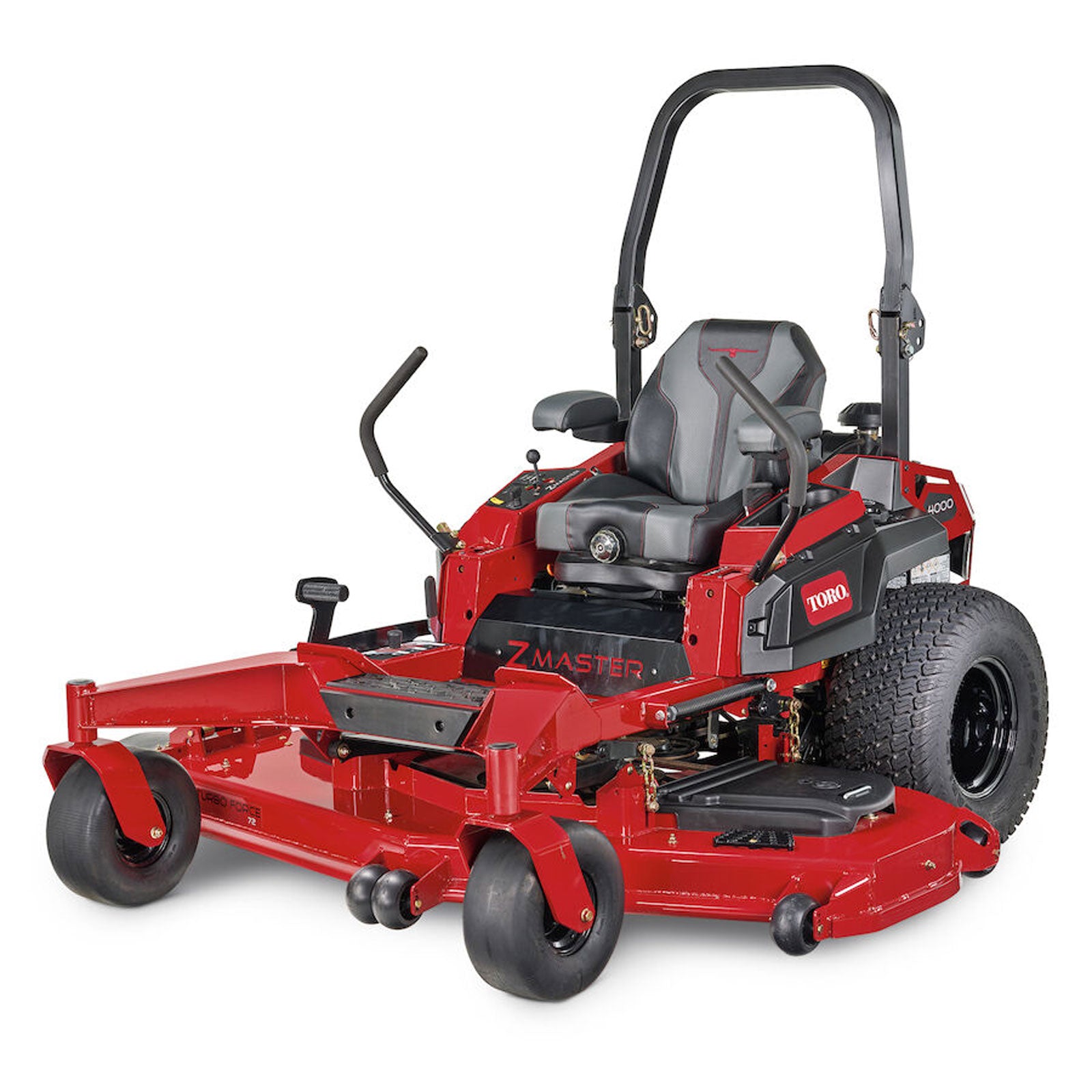

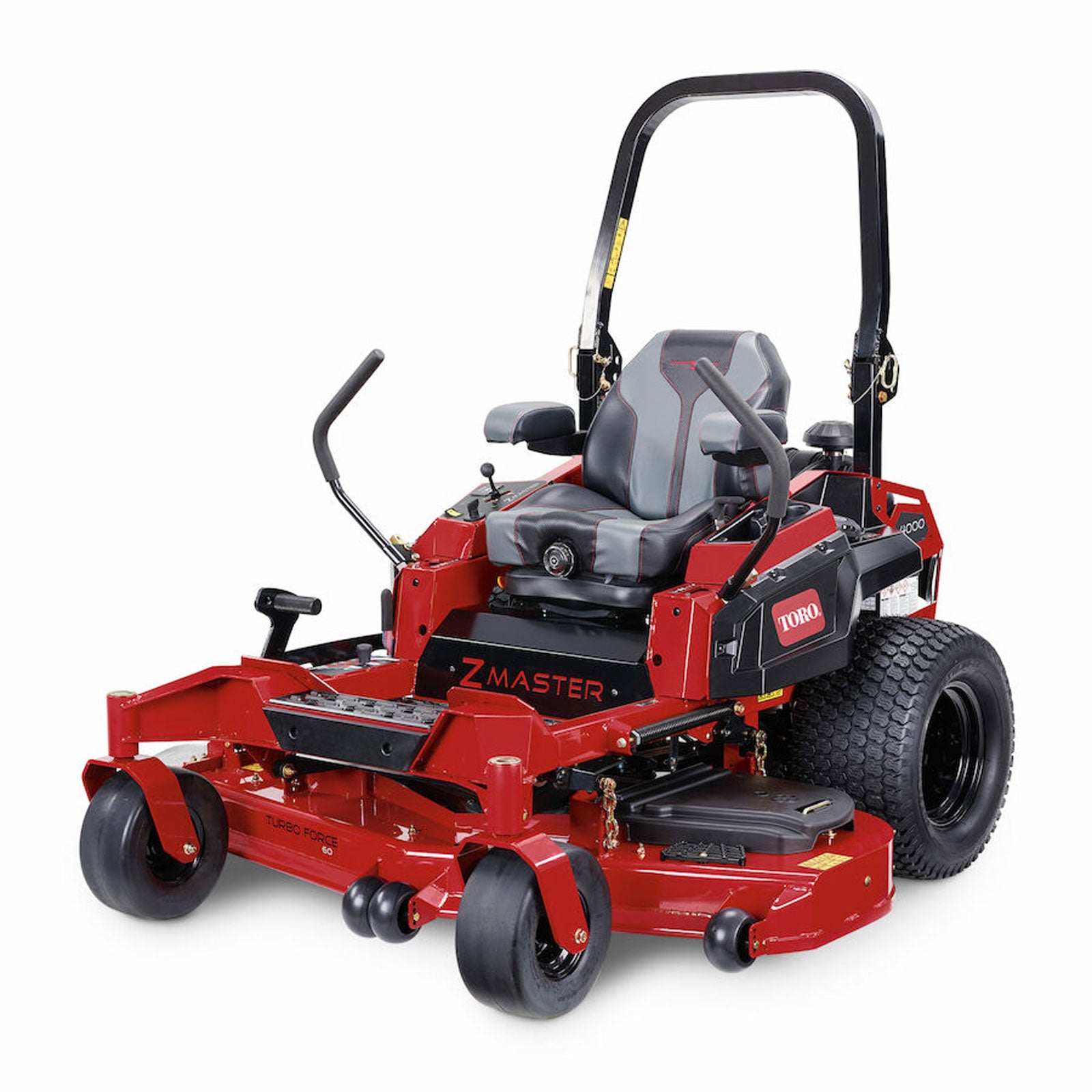

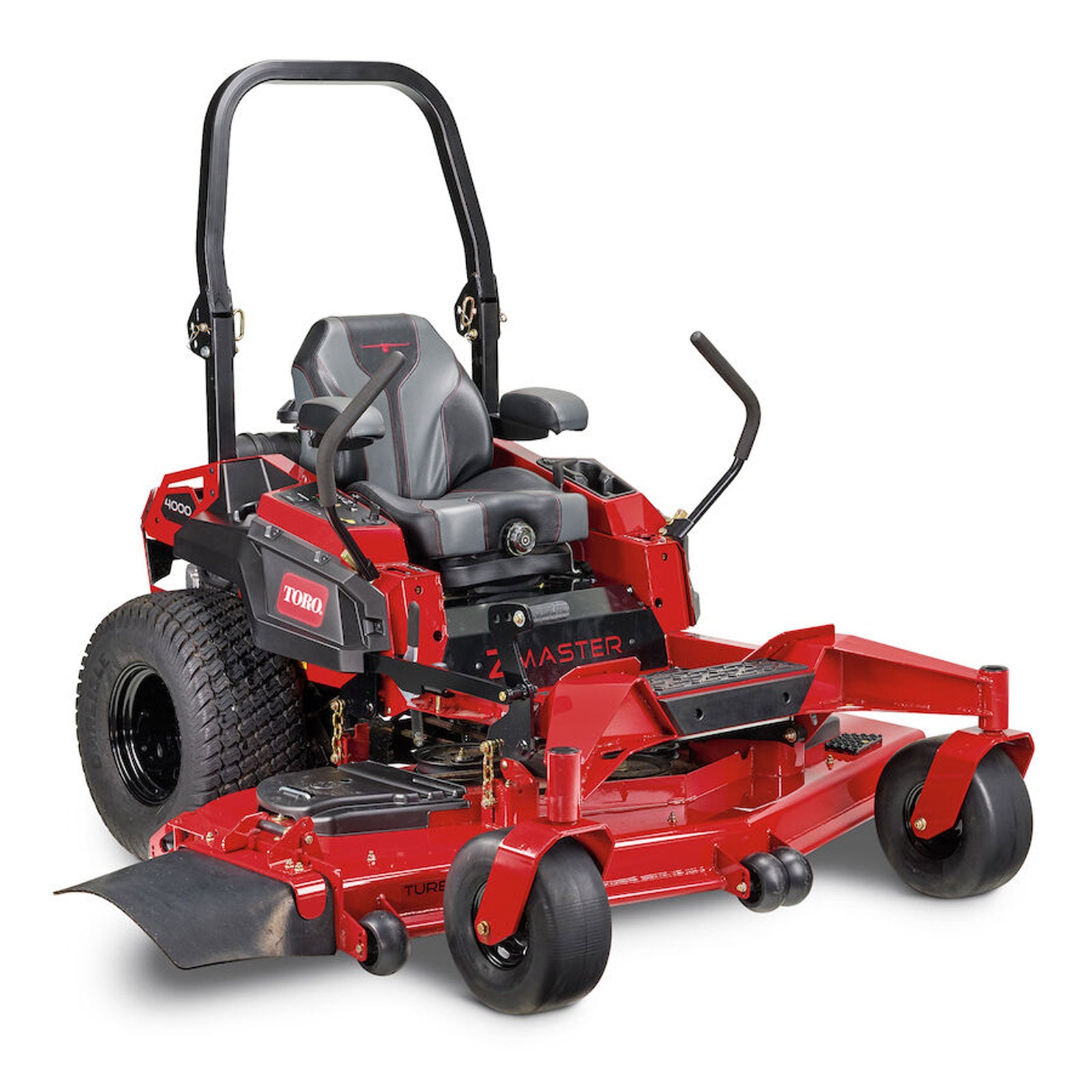

Toro Z-Master® 4000 Series HDX Pro XL 72" 35 hp Gas Zero Turn Mower

By Toro

$15,299.00 USD

Model

Description

The Z-Master 4000 HDX Pro XL has been engineered to last and built to reign. Redefine durability with a powerful 35 hp* Kawasaki FX1000V engine, heavy-duty commercial grade hydros, flat-free semi-pneumatic caster tires, 26 in. tires, and a 72 in. 7-Gauge High-Strength Steel TURBO FORCE® cutting deck. Add in the hour meter, USB ports, phone holder, and a cup holder, you’ll have everything you need from the comfort of the deluxe suspension seat to help you power through long days.

Go full throttle and have confidence in the precise cut from our TURBO FORCE® deck with I-beam front end paired with tubular chassis and bumper.
Easy on and off with a step-through front end, deck step plate, and anti-slip floormat.
Keep your phone and drink at arm's reach.
Keep tabs on time and keep devices powered up with the hour meter and USB ports.

Specifications

Blade Design
0.25 in. / 0.635 cm thick heat-treated steel

Blade Tip Speed
18,500 ft/min / 5,638 m/min

Box Dimensions
91.5 in. x 80 in. x 52.5 in. / 232.4 cm x 203.2 cm x 133.4 cm

CARB Compliant
Not CARB Compliant

Caster Tires
15 in. x 6.5 in. - 6 in. (38.1 cm x 16.5 cm - 15.2 cm) Flat-Free Semi-Pneumatic

Clutch
Electromagnetic

Deck Design
72" (183 cm) 7-Gauge High-Strength Steel TURBO FORCE®

Deck Size
72 in / 183 cm

Discharge Chute
Rubber

Drive Tires
Carlisle Multi Trac 26 in. x 12 in. - 12 in. (66 cm x 30.5 cm - 30.5 cm)

Engine
35 hp* Kawasaki FX1000V (999 cc) with Heavy-Duty Donaldson® Canister-Style Air Cleaner

Engine Brand
Kawasaki

Engine Displacement (cc)
999 cc

Engine Horsepower
35 hp

Foot Operated Height of Cut
Standard

Forward Ground/Transport Speed
Up to 12.0 mph / 19.3 kph

Fuel Capacity
10 gal. / 37.8 L / 40 Qt.

Fuel Type
Gasoline

Height of Cut
1.5 - 5.5 in. / 3.8 - 14.0 cm in 0.25 in (0.6 cm) increments

Hour Meter
Standard

Product Type
Zero Turn Mowers

Roll-Over Protection System (ROPS)
Folding; Standard

Seat
Handcrafted Deluxe Suspension Seat with Arm Rests

Spindle Bearings
Maintenance-free

Spindle Housing
9 in / 22.9 cm Diameter Cast Aluminum

Start Type
Electric

Steering Controls
1.4" (3.6 cm) Diameter Grips; Adjustable, Dampened

Transmission
ZT-5400 Integrated Pumps and Wheel Motors

Weight
1,383 lbs / 627.3 kg

View details

Toro Z-Master® 4000 Series HDX Pro XL 72" 35 hp Gas Zero Turn Mower

Toro Z-Master 4000 Series Brochure

Up to 12 MPH

Get more done with ground speeds up to 12 MPH without reducing cut quality.

TURBO FORCE® Cutting Deck

Enjoy years of reliable performance with a fully tubular frame and 7-gauge steel deck.

Rubber Discharge Chute

Trim close without damaging landscape structures or your chute.

Deck Step Plate

Keep your grip and remove excess mud from your shoes with a deck step plate.

Dual Capture Anti-Scalp Rollers

Intelligently engineered dual capture anti-scalp rollers ensure the highest quality of cut in the harshest terrain you can throw at it.

Step-Through Front End

Getting on and off the mower to pick up yard debris and other obstacles is a breeze with a step-through front end.

Phone and Cup Holder

Keep your phone and drink at arm's reach with built-in phone and cup holders.

Clear Sightline to Rear Tires

Clear sightline to rear tires for enhanced control so you can clear a path without tire spin.

USB Ports

USB ports to help you stay charged on the job.
