5000 Series 72 in. (183 cm) 26.5 hp EFI 747cc With Michelin® X® Tweel® Turf Tires

5000 Series

SKU: 72912

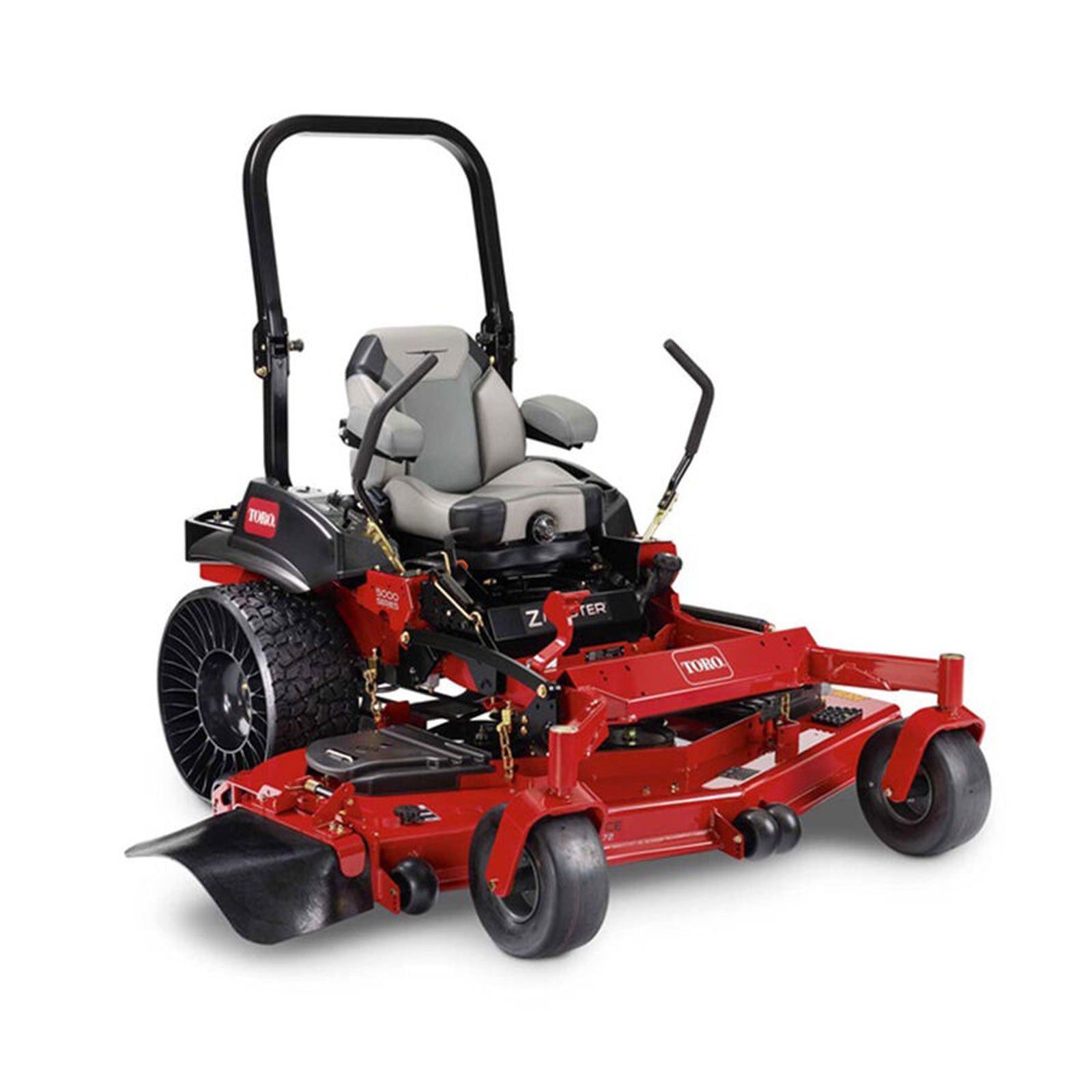

Toro Z-Master®5000 Series 72" 26.5 hp Gas Zero Turn Mower with Michelin X Tweel Turf Tire

By Toro

$17,899.00 USD

Model

Description

Z Master® 5000 Series - 26.5 hp (19.5kW) Kohler® Command Pro EFI 747cc Engine with 72 in. (183 cm) TURBO FORCE® deck.

Tweel Turf Tires - No air pressure to maintain, no flat tires, no compromises. Extra long wear life two to three times that of a pneumatic tire at equal tread depth.
Deluxe suspension seat features thick cushions, large bolsters and 3-D isolator mounts that absorb bumps and vibrations to reduce operator fatigue, fully adjustable to match operator comfort
Our TURBO FORCE deck features heat-treated steel blades and our patented adjustable discharge chute, nothing cuts as fast or as well
Unitized pump and wheel motor uses proven commercial hydraulic components while eliminating hoses and other potential leak points

Specifications

Adjustable Discharge Baffle
Standard, Tools-Free

Air Filter
Heavy-Duty Canister Air Cleaner

Anti Scalp Wheels
6 Standard, 1 Optional

Armrests
Standard

Blade Tip Speed
18,500 ft/min / 5,638 m/min

Blades
0.204 in. (0.5 cm) heat-treated steel

Box Dimensions
91 in. x 80 in. x 52.5 in. / 231.1 cm x 203.2 cm x 133.4 cm

CARB Compliant
Not CARB Compliant

Carrier Frame
3 in. x 1.5 in. x 10 gauge (7.6 cm x 3.8 cm x 10 gauge)

Caster Tires
13 in. x 6.5 in. - 6 in. (33 cm x 16.5 cm - 15.2 cm) Flat-Free Semi-Pneumatic

Comfort Platform
Deluxe Suspension with 3-D Isolation Mounts

Deck Design
80-Grade 7-Gauge 72" (183 cm) TURBO FORCE® w/bull-nose bumper

Deck Material
13 Gauge Steel

Deck Size
72 in / 183 cm

Discharge Chute
Rubber

Drive System
Hydraulic Unitized Pumps and Wheel Motors

Drive Tires
Airless radial 24 in. x 12 in. - 12 in. Tweels (61 cm x 30.5 cm - 30.5 cm) Tweel

Engine
26.5 hp* (19.5kW) Kohler® Command Pro EFI 747 cc

Engine Brand
Kohler

Engine Displacement (cc)
747 cc

Engine Horsepower
26.5 hp

Forward Ground/Transport Speed
Up to 10.0 mph / 16.0 kph

Front Bumper
Reinforced Bull-Nose

Fuel Capacity
12 gal. / 45.4 L / 48 Qt.

Fuel Type
Gasoline

Height of Cut
1.0 - 5.5 in. / 2.5 - 14.0 cm

Hour Meter
Standard

Hydraulic Fluid
Premium synthetic

Product Features
Electric Start, Gas Powered, Hour Meter

Product Type
Zero Turn Mowers

Product Use
Commercial

Roll-Over Protection System (ROPS)
Folding; Standard

Seat
Handcrafted Deluxe Suspension Seat with Arm Rests Featuring Bullhorn Accent

Spindle Bearings
Maintenance-free

Spindle Housing
9 in / 22.9 cm Diameter Cast Aluminum

Start Type
Electric

Steering Controls
1-5/8" (4.1 cm) Diameter Grips; Adjustable, Dampened

Weight
1,335 lbs / 605.5 kg

View details

Toro Z-Master®5000 Series 72" 26.5 hp Gas Zero Turn Mower with Michelin X Tweel Turf Tire

Toro Z-Master 5000 Series Brochure

Michelin® X® Tweel® Turf Tires

No air pressure to maintain, no flat tires, no compromises. Get extra long wear life two to three times that of a pneumatic tire at equal tread depth.

Deluxe Handcrafted Seat with Arm Rests

Ultimate padding and back support with a handcrafted seat with arm rests and bullhorn logo.

Exclusive TURBO FORCE Deck

High-capacity TURBO FORCE decks deliver unsurpassed strength, a superior cut, and increased productivity in extreme mowing conditions. Equipped with a patented adjustable baffle, TURBO FORCE decks can be fine-tuned in order to conquer changing turf conditions.

7-Gauge, High-Strength Steel

The TURBO FORCE deck is constructed of 7-gauge, high-strength steel which is 33% thicker and 32% higher in yield strength than ordinary 10-gauge commercial steel used in 7/10 decks. The combined effect is 75% stronger, so it easily handles the most demanding conditions and resists damage from impacts and abrasion.

Smarter design in a bull-nose bumper

7-gauge bull-nose bumper not only protects against frontal impacts, but also contains an integral underskirt to minimize blowout of debris and dust. The bottom, leading edge of the deck is raised 1/4" (6 mm), allowing grass to stand more upright when entering the cutting chamber, ensuring a level cut. Leaf "plowing" during spring and fall clean-up also is significantly reduced.

Folding Rollover Protection System ROPS

A Rollover Protection System (ROPS), complete with seat belt, comes standard for operator protection in the case of accidental rollovers and tipovers. In situations where sufficient vertical clearance is not available, such as loading on an enclosed trailer, the ROPS can be temporarily unlocked and folded down.

A Flat Crisp Cut with Precision Blades

(.250) thick precision blades resist flexing to provide a flat, crisp cut. High-strength, heat-treated alloy steel survives impacts and provides resistance to the rapid wear commonly associated with abrasive conditions. Options include Recycler® and Atomic® mulching blades, medium sail Bahai blades, and low sail sand blades.

Patented Adjustable Baffle

Allows operator to achieve maximum cutting performance by fine-tuning deck to conquer changing conditions, unique job sites or different times of the season. In extreme conditions, the baffle can be opened in order to conserve power and achieve faster mowing speeds. In less demanding conditions, the baffle can be closed to yield micro-sized particles and maximize discharge velocity.

Operator Information Center

The instrument panel includes a digital hour meter, fuel gauge, and voltage meter, as well as diagnostic indicators for the safety interlock system.

Rubber Discharge Chute

High performance rubber discharge chute allows for close trimming without damaging chute or landscape structures. Patented design provides exceptional clipping dispersion.

Smooth, Powerful Response

The new unitized pump and wheel motor use proven commercial hydraulic components while eliminating hoses and other potential leak points. You'll get a smoother, faster response while enjoying an even more reliable machine.

ast Aluminum Spindle

Cools quickly for enhanced durability and performance.
