TimeCutter
SKU: 77502

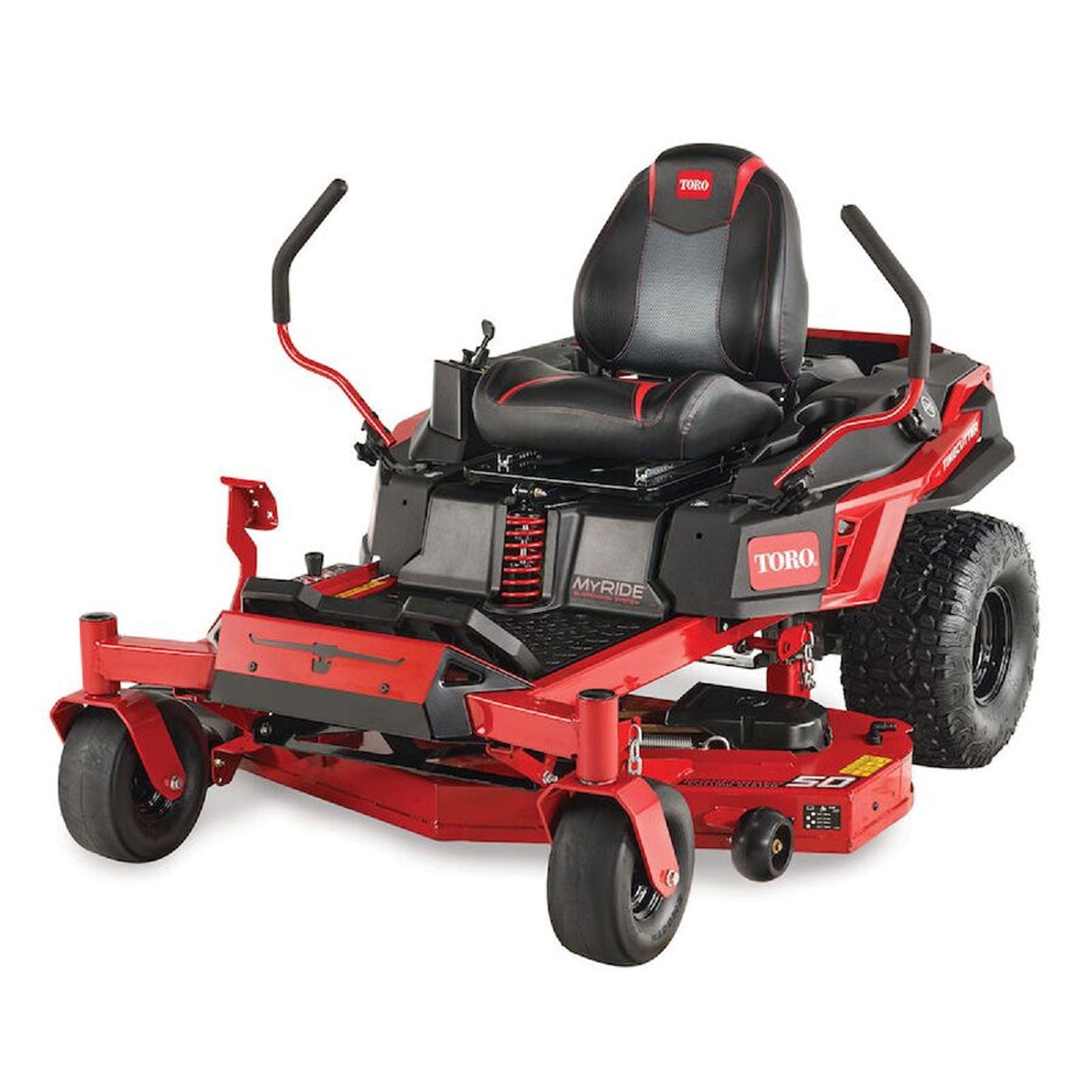

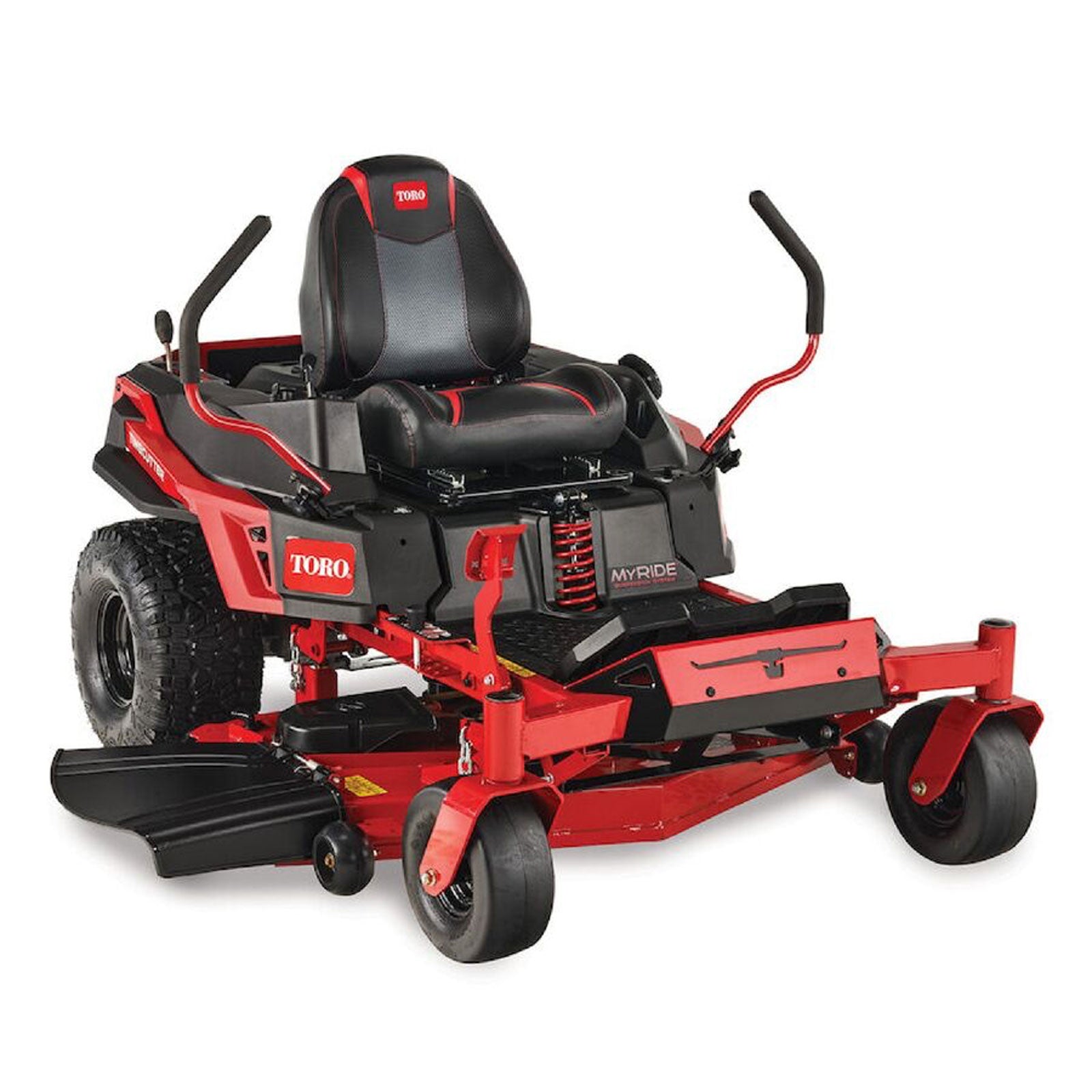

Toro TimeCutter® Max MyRIDE® 50" 23 hp Zero Turn Mower

By Toro
$4,699.00 USD
Model
34 in. (86 cm) TimeCutter® Zero Turn Mower Model: 77301
42 in. (107 cm) TimeCutter® Zero Turn Mower Model: 75748
42 in. (107 cm) TimeCutter® MyRIDE® Zero Turn Mower Model: 75747
42 in. (107 cm) TimeCutter® Zero Turn Mower Model 77401
42 in. (107 cm) TimeCutter® Zero Turn Mower Model: 77404
50 in. (127 cm) TimeCutter® Max Zero Turn Mower Model: 77505
50 in. (127 cm) TimeCutter® Max Zero Turn Mower Model: 77501
54 in. (137 cm) TimeCutter® Max Zero Turn Mower Model: 77504
60 in. (152 cm) TimeCutter® Max Zero Turn Mower Model: 77601
54 in. (137 cm) Timecutter® Max Havoc™ Zero Turn Mower Model: 77506
54 in. (137 cm) TimeCutter® Max Havoc™ MyRide® Zero Turn Mower Model: 77507
60 in. (152 cm) TimeCutter® Max Havoc™ MyRIDE® Zero Turn Mower Model: 77603
50 in. (127 cm) TimeCutter® Max MyRide® Zero Turn Mower Model: 77502
54 in. (137 cm) TimeCutter® Max MyRide® Zero Turn Mower Model: 77503
60 in. (152 cm) TimeCutter® MyRIDE Max Zero Turn Mower Model: 77602
Description
When it comes to your yard, second best just won't cut it. That's why the Toro TimeCutter MAX is designed to take down grass like a pro and leave you feeling like a million bucks when you're done. With features like an unflinching heavy duty IronForged deck and fully floating MyRIDE® Suspension, you get the toughness and precision that comes with over a century of pro-level engineering and a shockingly smooth, back-saving ride and save a ridiculous amount of time cutting.
  • Patented MyRIDE® Suspension sits isolated from the frame to save your back and accelerate your mow.
  • Over 100 years of Pro DNA course through the veins of every mower we build.
  • Its heavy duty steel IronForged® Deck doesn't flinch no matter what you throw its way.
  • The four-point deck hanging system doesn't flinch under your feet when you get on or off the mower.
  • Beefy hybrid-tread rear tires give you maximum traction without tearing up your turf.
  • Spray blocking fenders keep tire spray off your engine, and more importantly, you.
  • Automotive-style fuel fill means less mess as you top off the huge 5 gallon tank.
  • The integrated drain hose makes oil changes effortless and takes the mess out of maintenance.
  • Built upon an ultra-strong, fully tubular steel frame, this beast is rock solid and ready to ride.
  • The same drop pin height of cut used by the pros. So you can adjust to the perfect height, quickly.
Specifications

Air Filter
Standard Kawasaki Air Cleaner

Anti Scalp Wheels
3 Standard

Armrests
Optional

Bagger Capacity
4.9 bushels

Blade Tip Speed
17,600 ft/min / 5,364 m/min

Box Dimensions
82 in x 57 in x 35 in / 208.3 cm x 144.8 cm x 88.9 cm

CARB Compliant
Not CARB Compliant

Carrier Frame
3 in x 1.5 in x 0.120 in (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel

Caster Tires
12 in x 6 in - 5 in (30.5 cm x 12.2 cm - 12.7 cm) Pneumatic

Clutch
Electromagnetic

Comfort Platform
MyRIDE Suspension System

Cooling System
Air cooled

Crankshaft
1 in (25 mm) with steel protector

Cup Holder
Standard

Cutter System
Steel cutting blade

Deck Design
10-Gauge Steel IronForged

Deck Material
10 Gauge Steel

Deck Size
50 in / 127 cm

Discharge Chute
Side

Drive System
HYDRO

Drive Tires
20 in x 10 in - 8 in (51 cm x 26 cm - 20.3 cm)

Drive Type
Rear-Wheel Drive

Engine
23 hp Kawasaki FR691V 726 cc

Engine Brand
Kawasaki

Engine Displacement (cc)
726 cc

Engine Horsepower
23.0 hp

Engine Power (kW)
17.2 kW

Foot Operated Height of Cut
Standard

Forward Ground/Transport Speed
Up to 7.0 mph / 11.2 kph

Forward Mowing Speed
Up to 7.0 mph / 11.2 kph

Frame
3 in x 1.5 in (7.6 cm x 3.8 cm) Steel Tubing

Fuel Capacity
5 gal / 18.9 L / 20 Qt

Fuel Type
Gasoline

Greasable Bearings
Yes

Height of Cut
1.5 - 5.0 in / 3.8 - 12.7 cm

Hitch Bracket
Standard

Hour Meter
Optional

Hydraulic Drive
Standard

Lighting
Optional

Number of Blades
3

Product Features
MyRIDE Suspension System

Product Type
TimeCutter Max MyRide

Product Use
Residential

Recommended Oil Type
10W-30

Roll-Over Protection System (ROPS)
Optional

Seat
19 in Gaming Style

Spindle Bearings
Maintenance-free

Spindle Housing
Cast-Aluminum

Start Type
Electric

Steering Controls
Twin lever

Steering Dampeners
Standard dampers

Terrain Type
Flat with obstacles

Tires
12 in x 6 in (30.5 cm x 15.2 cm) Front, 20 in x 11 in (50.8 cm x 27.9 cm) Rear

Tow Capacity
Combined machine, user, towed weight may not exceed 1,000 lbs

Transmission
Dual Hydrostatic HG-EZT2200

Washout Port
Standard

Weight
684 lbs / 310.3 kg
View details

Toro TimeCutter® Zero Turn Brochure

Game Changer. Back Saver.

Save yourself from a rough terrain-driven beating with our patented MyRIDE®Suspension System. Sitting isolated from the mower frame, it'll save your back and accelerate your mow.

Proven by Pros. Perfected for You.

Over 100 years of Pro DNA course through the veins of every mower we build. You get the same commercial-grade features that pros rely on for your own pristine, professional-looking lawn.

Turf Tough. Bull Strong.

Its heavy duty steel IronForged®Deck doesn't flinch no matter what you throw its way. With bulletproof material-reinforced belts, a beefy leading edge and huge spindles, this beast is built to last.

Sturdy Step-On.

The four-point deck hanging system doesn't flinch under your feet when you get on or off the mower.

Better Fill. Fewer Spills.

Automotive-style fuel fill means less mess as you top off the huge 5 gallon tank.

Traction for Any Terrain.

Beefy hybrid-tread rear tires give you maximum traction without tearing up your turf.

Shut Down Sprayback.

There's nothing good about getting blasted with filthy backsplash. That's why spray blocking fenders come standard—to keep tire spray off your engine, and more importantly, you.
