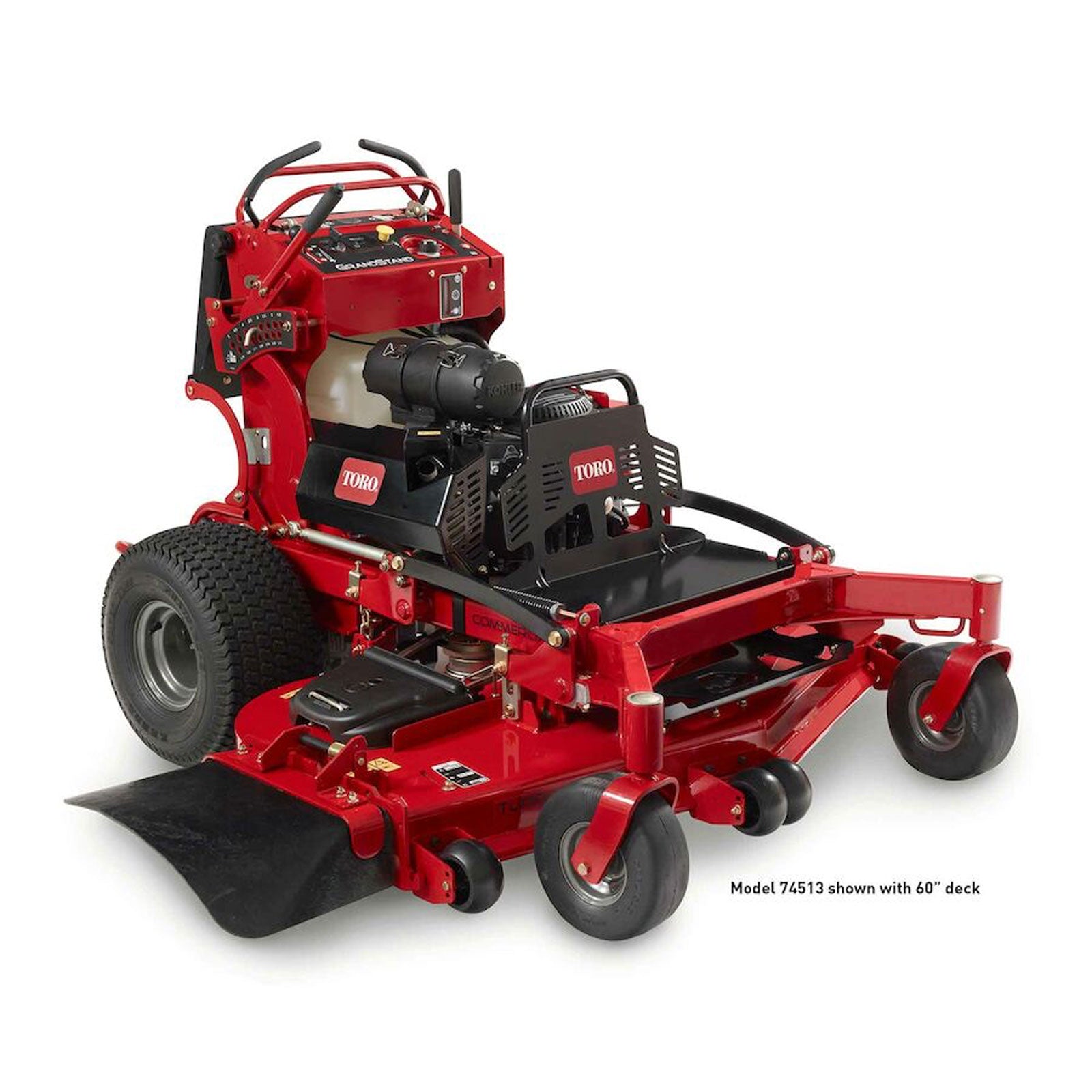

GrandStand® (California Model) Model: 74513

GrandStand

SKU: 72519

Toro GrandStand® 52" 25 hp Stand-On Mower

Name: Toro GrandStand® 52" 25 hp Stand-On Mower
Brand: Toro
SKU: 72519
Price: 13399.00 USD
Availability: OutOfStock

By Toro

$13,399.00 USD

Model

Description

Rough bumps and challenging terrain are all in a day’s work. Feeling them shouldn’t have to be. The Toro GrandStand combines the speed and comfort of a zero-turn rider with the on-and-off ease of a wide area walk-behind — creating a fast, maneuverable and more productive alternative. And now the GrandStand is even better with all-new next generation upgrades that add up to higher productivity, lower maintenance and easier service. This mower has a 25 hp Kohler EFI 747cc engine.

Conserves space to get more machines on your trailer, or allows for a smaller trailer and lighter load.
Foldable operator platform instantly converts the machine to a walk-behind.
Great visibility for easy navigation around obstacles, protecting the operator, mower, and property.
Quick access to the engine, hydros and controls with the easy removal of the fuel tank.
No hydraulic hoses, reduced parts, no routine greasing and simplified design to save you time.
Self-adjusting suspension and a larger platform area for a more secure stance on sloped terrain.
The TURBO FORCE^® cutting deck is built to withstand the long, tough days on the job.
10.5 gallon fuel tank for fewer fill-ups. Transparent tank make it easy to gauge the fuel level.
A wide stance and optimal balance enhance hillside stability and control.

Specifications

Adjustable Discharge Baffle
Standard, tools-free

Air Filter
Heavy-duty canister air cleaner

Anti Scalp Wheels
Optional

Blade Tip Speed
18,500 ft/min, 5,638 m/min

Blades
0.204 in, 0.5 cm heat-treated steel

Box Dimensions
82 in x 63 in x 52 in, 208.3 cm x 160.0 cm x 132.1 cm

CARB Compliant
Not CARB Compliant

Carrier Frame
3 in x 1.5 in x 12 gauge, 7.6 cm x 3.8 cm x 12 gauge

Caster Tires
11 in x 4 in - 5 in, 27.9 cm x 10.2 cm - 12.7 cm, flat-free semi-pneumatic

Clutch
Electromagnetic

Comfort Platform
Foldable operator platform with suspension

Controls
Twin lever

Deck Design
80-grade 7-gauge 52 in, 132.1 cm TURBO FORCE with bull-nose bumper

Deck Material
7 gauge steel

Deck Size
52 in / 132 cm

Discharge Chute
Rubber

Drive System
Unitized pumps 10 cc rev, wheel motors 10 cir

Drive Tires
20 in x 10.5 in - 8 in, 50.8 cm x 26.7 cm - 20.3 cm

Engine
25 hp Kohler Command EFI, 747 cc, 18.6 kW

Engine Brand
Kohler

Engine Displacement (cc)
747 cc

Engine Horsepower
25 hp

Forward Ground/Transport Speed
Up to 10.0 mph, 16.0 kph

Front Bumper
Reinforced bull-nose

Fuel Capacity
10.5 gal, 39.7 L, 42 Qt

Fuel Type
Gasoline

Height of Cut
1.5 to 5.0 in, 3.8 to 12.7 cm

Hour Meter
Standard

Hydraulic Fluid
Premium synthetic

Product Type
Stand-on mowers

Product Use
Commercial

Spindle Bearings
Maintenance-free

Spindle Housing
9 in, 22.9 cm diameter cast aluminum

Start Type
Electric

Steering Controls
Twin lever

Weight
899 lbs / 407.8 kg

View details

Toro GrandStand® 52" 25 hp Stand-On Mower

GrandStand® Stand-On Mowers Brochure

2-in-1 Versatility

Foldable operator platform instantly converts the machine to a walk-behind. It easily lowers back down when it’s time to ride, saving time and trailer space.

Better Visibility

Great visibility from the operator platform offers easy navigation around obstacles and under branches, protecting the operator, mower, and property.

Proven Platform

Uses the industry-proven TURBO FORCE®cutting deck that is built to withstand the extreme conditions of long, tough days on the job.

25% Faster Speeds

The 10 mph transport speed gets you to your next destination 25% faster.*

Smaller Footprint

With the platform folded, the small footprint allows you to transport more products on the trailer.

Traction On Hills

A wide stance and optimal balance enhance hillside stability and control. Operators can shift weight as needed to further enhance performance.

Patented Adjustable Baffle

Allows operator to achieve maximum cutting performance by fine-tuning deck to conquer changing conditions, unique job sites or different times of the season. In extreme conditions, the baffle can be opened in order to conserve power and achieve faster mowing speeds. In less demanding conditions, the baffle can be closed to yield micro-sized particles and maximize discharge velocity.

Easier Maintenance

Access to both sides of the engine, hydros and controls with the easy removal of the fuel tank.

Less Maintenance Needed

The elimination of hydraulic hoses, reduced parts, no routine greasing and simplified design, save you time.

Smarter design in a bull-nose bumper.

7-gauge bull-nose bumper not only protects against frontal impacts, but also contains an integral underskirt to minimize blowout of debris and dust. The bottom, leading edge of the deck is raised 1/4" (6 mm), allowing grass to stand more upright when entering the cutting chamber, ensuring a level cut. Leaf "plowing" during spring and fall clean-up also is significantly reduced.

Cast Aluminum Spindle

Cools quickly for enhanced durability and performance.

Comfortable Ride

The platform has self-adjusting suspension, a larger open area to move around, and sloped sides for a more secure stance when cutting sloped terrain.

Extra Large Fuel Tank

Improve productivity with easy access on and off the machine with up to 10.5 gallons of fuel capacity to mow longer with fewer stops. Transparent tank make it easy to gauge the fuel level.

A Flat Crisp Cut with Precision Blades

(.250) thick precision blades resist flexing to provide a flat, crisp cut. High-strength, heat-treated alloy steel survives impacts and provides resistance to the rapid wear commonly associated with abrasive conditions. Options include Recycler®and Atomic®mulching blades, medium sail Bahai blades, and low sail sand blades.
