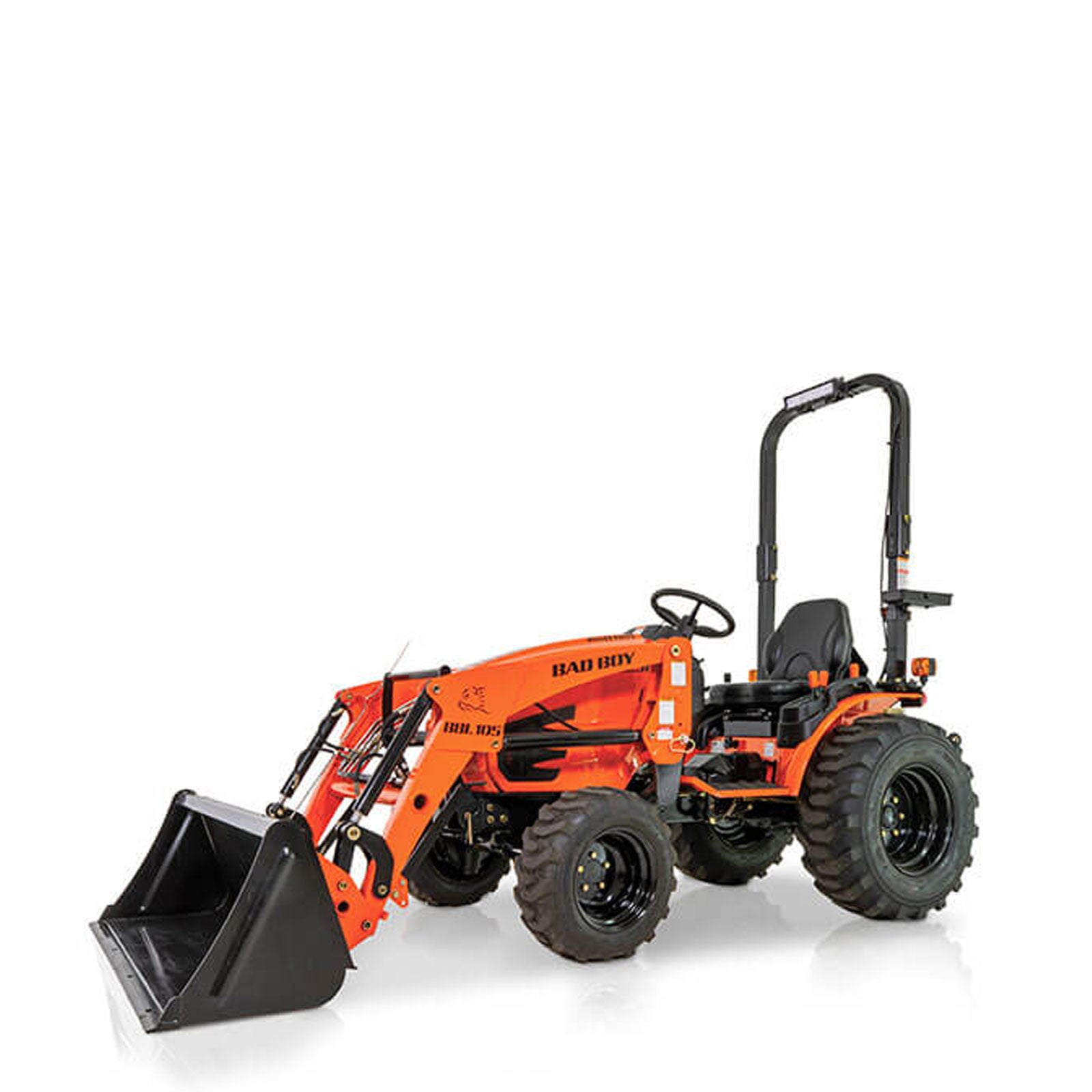

Bad Boy 1025H Hydro Max Sub-Compact Tractor

By Bad Boy

$21,399.00 USD

Model

Pickup available at 195 Osceola Mill Road

Usually ready in 2-4 days

Description

The Bad Boy 1025 Sub-Compact Tractor proves that small size does not mean small capability. Built for property owners who need real performance in tight spaces, the 1025 delivers 25 horsepower of diesel power, Hydro Max transmission control, and serious traction in a compact footprint.

It is designed to fit where larger tractors cannot, yet still handle loader work, ground engagement, mowing, and PTO-driven implements with confidence.

With cast iron axles, selectable 4WD, differential lock, and Bad Boy steel construction, the 1025 is built to work hard, last long, and stay comfortable while doing it. Backed by a 7-year powertrain warranty, this sub-compact punches well above its weight.

Specifications

Engine
3-cylinder, water-cooled diesel
Engine horsepower: 24.6 HP
Displacement: 77.3 cu in
Fuel tank capacity: 5.8 gallons

Drivetrain
Transmission: HST
Number of ranges: 2
Clutch: None
Brakes: Wet, multi-disc

PTO
Type: Independent
Rear PTO speed: 540 RPM
PTO horsepower: 18.8 HP

Hydraulics
Type: Power assisted hydro-static
Total hydraulic flow: 7.0 GPM (2.8 steering + 4.2 implement)
3-point hitch: Category 1
3-point hitch lift capacity at 24 inches behind lift point: 110 lbs
Rear remote valve: Not available

Electrical
Battery: 12V, 425 CCA
Alternator: 12V, 40A

Wheels and Tires
Front tires: 23x8.50-12
Rear tires: 12-16.5

Dimensions
Overall length: 104 inches
Overall width: 45.8 inches
Overall height: 91.3 inches
Wheelbase: 57.5 inches
Minimum ground clearance: 9.4 inches
Operating weight: 1,638 lbs

Loader Compatibility (Optional)
Loader model: BBL105
Standard bucket width: 50 inches
Maximum lift height: 75.5 inches
Dig depth: 4.6 inches
Lift capacity at pivot pin: 992 lbs
Breakout force: 1,531 lbs
Shipping weight: 573 lbs

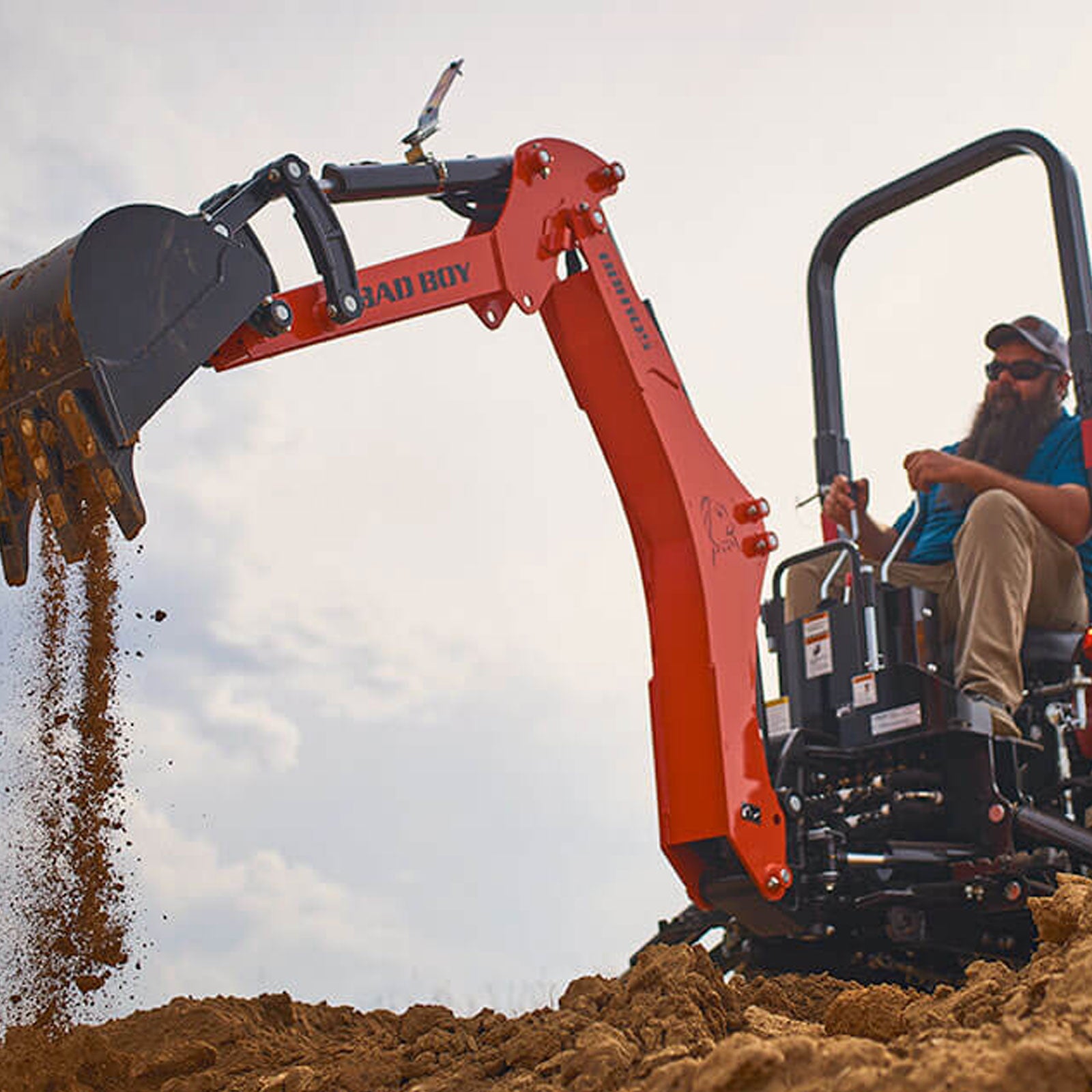

Backhoe Compatibility (Optional)
Backhoe model: BBH105
Bucket width: 12 inches
Mounting type: Subframe-mounted, quick attach
Maximum dig depth: 76 inches
Dig force: 2,020 lbs
Shipping weight: 816 lbs

View details

Bad Boy 1025H Hydro Max Sub-Compact Tractor

Owner's Manual

25 HP Water-Cooled Diesel Engine
Delivers strong, reliable power with excellent fuel efficiency for property maintenance, landscaping, and light agricultural work.

Hydro Max Transmission with Dual HST Pedals
Automatically increases engine RPM with pedal input for smooth, intuitive control without constant throttle adjustments.

Selectable 4WD with Differential Lock
Maximizes traction in soft ground, slopes, and challenging terrain by evenly distributing power to the rear wheels when needed.

Sub-Compact Size with Serious Lift Capability
Offers up to 992 lbs of loader lift capacity at the pivot pins while maintaining a compact footprint for tight access areas.

Category 1 Three-Point Hitch and Independent PTO
Supports a wide range of rear-mounted implements with consistent power delivery for mowing, tilling, and ground work.

Built Tough with Bad Boy Steel
Features a durable steel frame, power steering, and long-term reliability backed by a 7-year powertrain warranty.
