7500-D Series 96 in. (244 cm) 37 hp 1642cc Diesel Rear Discharge

7500 Series

SKU: 72098

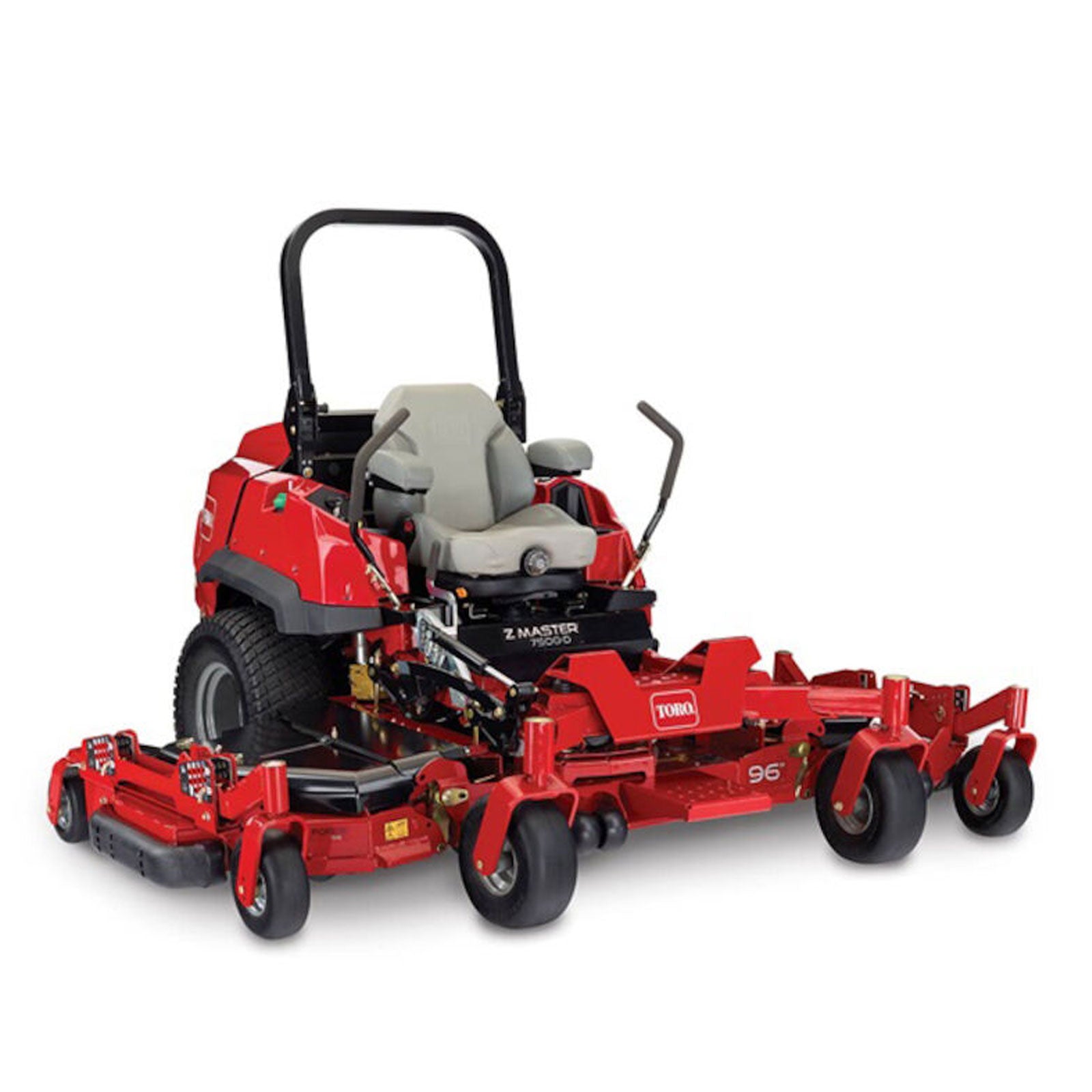

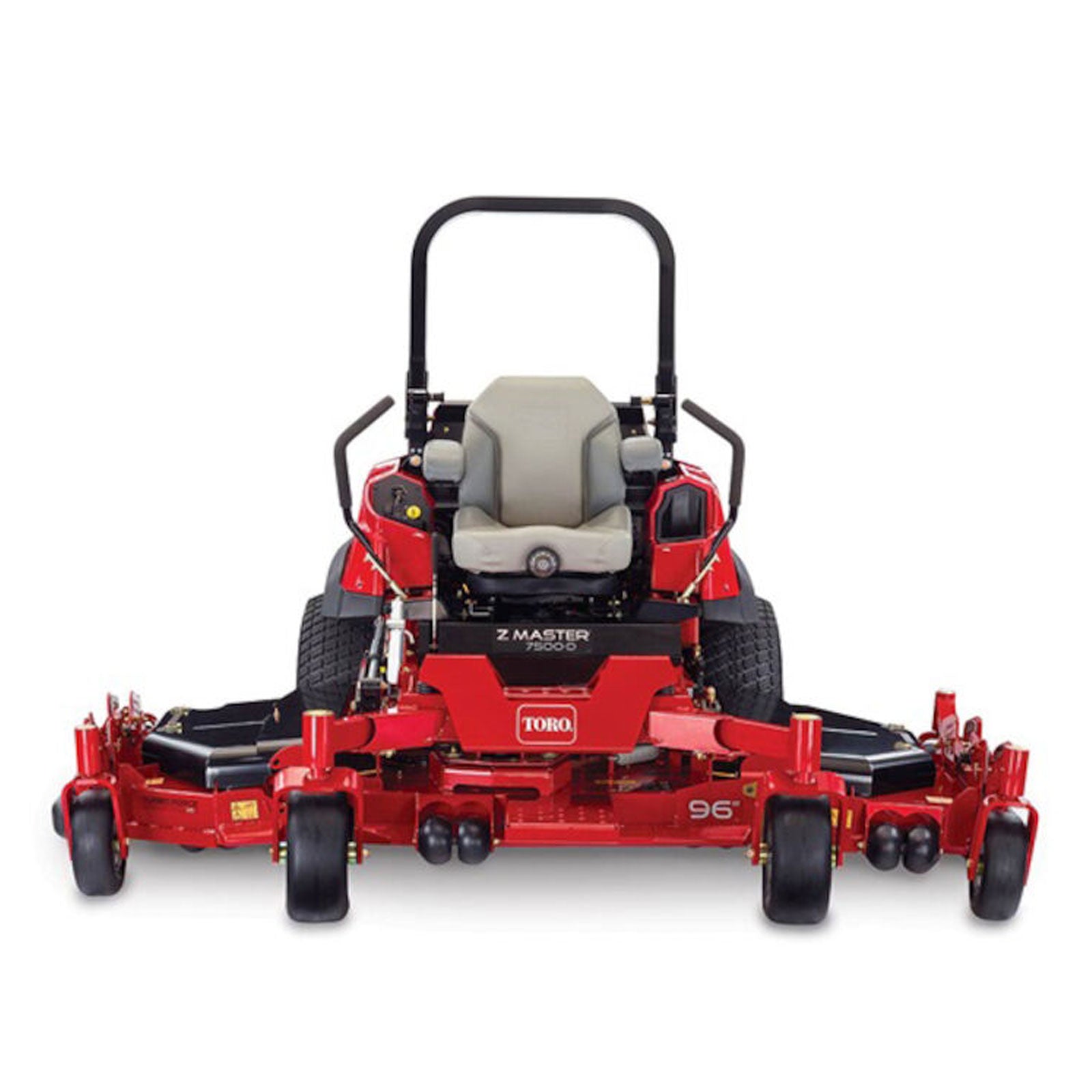

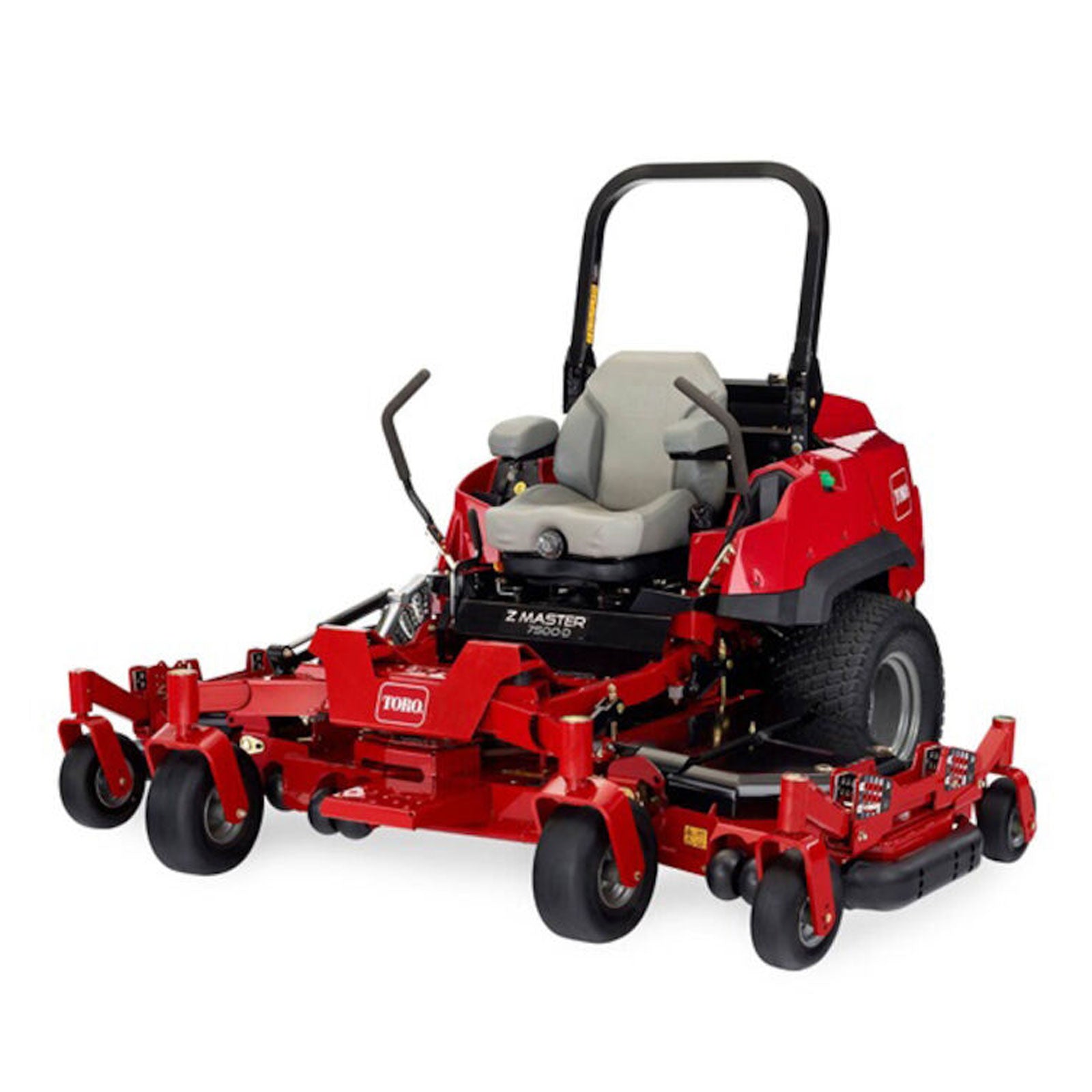

Toro Z-Master® 7500 Series 96" 37 hp Diesel Zero Turn Mower

By Toro

$57,199.00 USD

Model

Description

Looking for a workhorse mower that’s easy to operate and gets the job done faster? Check out the Toro® Z Master® 7500-D. The highly productive 96-inch deck design folds up neatly for easy transport, then folds down to handle your biggest jobs — in half the time of comparable mowers. It delivers all the speed and maneuverability of a zero-turn, along with the superior quality of cut you expect from Toro.

Powerful 37 HP Yanmar® Diesel 1642cc Engine
Deluxe suspension seat with iso-mounts to reduce operator fatigue and vibration
Tech Assist - Save fuel and enjoy top performance with Horizon™.
Horizon360^® Business Management Software. Work More Efficiently. Run More Profitably.

Specifications

Air Filter
Heavy-Duty Canister Air Cleaner Air Filtration System with Electronic Vacuum Sensor

Anti Scalp Wheels
13 Standard

Armrests
Standard

Blade Tip Speed
18,100 ft/min / 5,516 m/min

Blades
4 blades at 24.5 in. length

Box Dimensions
97.3 in. x 75.7 in. x 72 in. / 247.1 cm x 192.3 cm x 182.9 cm

CARB Compliant
CARB Compliant

Caster Tires
15 in. x 6 in. - 6 in. (38.1 cm x 15.2 cm x 15.2 cm) Flat-Free Semi-Pneumatic

Clutch
Wet Disc

Deck Design
7-Gauge TURBO FORCE® w/ Bull-Nose Bumper

Deck Material
7 Gauge Steel

Deck Size
96 in / 244 cm

Discharge Chute
Rear

Drive System
17.84 cu in Hydro-Gear HGM-H Motors with 18 cc Kanzaki® Pump

Drive Tires
26 in. x 12 in. - 12 in. (66.0 cm x 30.5 cm x 30.5 cm)

Engine
37 hp* Yanmar® Diesel 1642 cc

Engine Brand
Yanmar

Engine Displacement (cc)
1642 cc

Engine Horsepower
37 hp

Foot Operated Height of Cut
Hydraulic with Rocker Switch

Forward Ground/Transport Speed
Up to 12.5 mph / 20.1 kph

Forward Mowing Speed
Up to 12.5 mph / 20.1 kph

Front Bumper
Bull-Nose

Fuel Capacity
12.5 gal. / 47.3 L / 50 Qt.

Fuel Type
Diesel

Greasable Bearings
No

Height of Cut
1.0 - 5.5 in. / 2.5 - 14.0 cm

Hour Meter
Horizon™ Technology

Notes
ROPS Height (Folded) 51 in. (129.5 cm), ROPS Height (Upright) 71.8 in. (182.4 cm)

Number of Blades
4

Product Features
Anti-Scalp Rollers, Cup Holder, Deck Lift Assist, Diesel, EFI, Electric Start, Foot Operated Height of Cut, Horizon System, Rear Discharge

Product Type
Zero Turn Mowers

Roll-Over Protection System (ROPS)
Standard

Seat
Deluxe Suspension Seat

Spindle Bearings
Maintenance-free

Spindle Housing
9 in / 22.9 cm Diameter Cast Aluminum

Start Type
Electric

Steering Controls
1-5/8" (4.1 cm) Diameter Grips; Adjustable, Dampened

Terrain Type
Rough Terrain

Weight
2,635 lbs / 1,195 kg

View details

Toro Z-Master® 7500 Series 96" 37 hp Diesel Zero Turn Mower

Toro Z-Master 7500 Series Brochure

Superior Performance

Powered by a Tier 4-compliant, three-cylinder, 1.6 liter, 37 hp Yanmar diesel engine, this mower is packed with power to tackle the toughest mowing jobs.

The New Standard in Comfort

The floor pan and deluxe suspension seat are iso-mounted to reduce vibration. That results in a better operator experience and more productivity.

Extended Service Intervals

Save on maintenance with extended service intervals and a deck design that uses up to four matching blades. The mower is also backed by a 5-year, 2,000-hour warranty (first two years no-hour-limit).

Contour-Following Wing Decks

Wing decks on the 96" model flex up 20 degrees and down 15 degrees to follow the terrain, hugging the ground for the smoothest possible cut. Folds to 75" to fit in trailer.

Horizon Technology

Choose the right operating mode for mowing conditions, saving fuel costs while maintaining top-level performance with our Horizon™ Technology.
