GrandStand® 36 in. (91 cm) 15 hp 541cc Model: 74534
GrandStand® 36 in. (91 cm) 15 hp 541cc Model: 74534
GrandStand
SKU: 74534

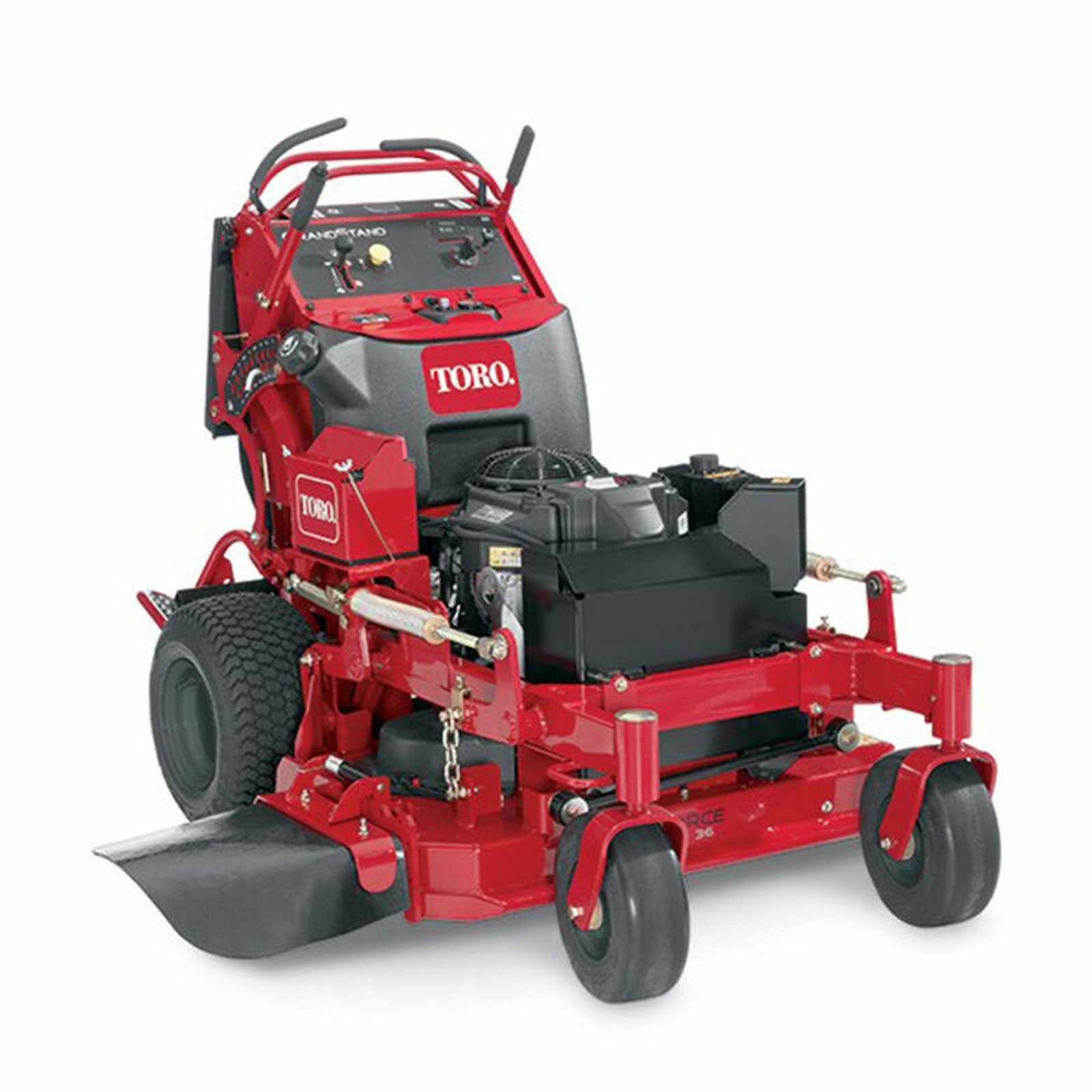

Toro GrandStand® 36" 15 hp Stand-On Mower

By Toro
$10,299.00 USD
Model
GrandStand® 36 in. (91 cm) 15 hp 541cc Model: 74534
GrandStand® (California Model) Model: 74513
GrandStand® (California Model) Model: 74513
GrandStand® (California Model) Model: 74513
GrandStand® (California Model) Model: 74513
GrandStand® (California Model) Model: 74513
GrandStand® (California Model) Model: 74513
GrandStand® (California Model) Model: 74513
GrandStand® (California Model) Model: 74513
GrandStand® (California Model) Model: 74513
GrandStand® HDM 32 in (81.3 cm) 18.5hp (603cc) Model: 74532
GrandStand® HDM 36 in (91.4 cm) 18.5hp (603cc) Model: 74535
GrandStand® HDX 52 in. 31 hp 999 cc Model: 72506
GrandStand® HDX 60 in. 31 hp 999 cc Model: 72506 with 52" deck
Toro GrandStand® HDX 60" 37 hp Stand-On Mower 72514
GrandStand® HDX 72 in. 37 hp 993 cc EFI with Oil Guard Model: 72517
Description

Rough bumps and challenging terrain are all in a day’s work. Feeling them shouldn’t have to be. The Toro GrandStand combines the speed and comfort of a zero-turn rider with the on-and-off ease of a wide area walk-behind — creating a fast, maneuverable and more productive alternative. And now the GrandStand is even better with all-new next generation upgrades that add up to higher productivity, lower maintenance and easier service. This mower has a 15 hp (11kW) Kawasaki® FS541 engine with a 36 in. (91 cm) TURBO FORCE® deck.

  • Foldable operator platform instantly converts the machine to a walk-behind.
  • Exceptional visibility from the GrandStand protects the operator, the mower and the property. The operator is better able to steer clear of obstacles, and easily pass beneath branches.
  • With hefty cast iron spindles including maintenance free bearings plus only annual grease points, there will be less need for routine maintenance. That means less time spent off your mower and more time generating profits with it.
  • Conserves space to get more machines on your trailer, or allows for a smaller trailer and lighter load.
Specifications

Adjustable Discharge Baffle
Standard

Blade Tip Speed
18,500 ft/min, 5,638 m/min

Blades
0.204 in, 0.5 cm heat-treated steel

Box Dimensions
77.25 in x 49 in x 52 in, 196.2 cm x 124.5 cm x 132.1 cm

CARB Compliant
Not CARB Compliant

Carrier Frame
3 in x 1.5 in x 12 gauge, 7.6 cm x 3.8 cm x 12 gauge

Caster Tires
11 in x 4 in - 5 in, 28 cm x 10.2 cm - 12.7 cm, flat-free semi-pneumatic

Clutch
Electromagnetic

Comfort Platform
Foldable operator platform with suspension

Controls
Twin lever

Deck Design
7-gauge 36 in, 91 cm TURBO FORCE with bull-nose bumper

Deck Material
7 gauge steel

Deck Size
36 in / 91 cm

Discharge Chute
Rubber

Drive System
Pumps 10cc rev, wheel motors 10 cir

Drive Tires
18 in x 8.5 in - 8 in, 46 cm x 22 cm - 20 cm

Engine
15 hp Kawasaki FS541V, 603 cc

Engine Brand
Kawasaki

Engine Displacement (cc)
603 cc

Engine Horsepower
15.0 hp

Forward Ground/Transport Speed
Up to 8.0 mph, 12.8 kph

Front Bumper
Reinforced bull-nose

Fuel Capacity
7.8 gal, 29.5 L, 31.2 Qt

Fuel Type
Gasoline

Height of Cut
1.0 to 5.0 in, 2.5 to 12.7 cm

Hour Meter
Standard

Hydraulic Fluid
Premium synthetic

Number of Blades
3

Product Type
Stand-on mowers

Product Use
Commercial

Spindle Bearings
Maintenance-free

Spindle Housing
9.375 in, 23.8 cm diameter cast iron

Start Type
Electric

Steering Controls
Twin lever

Weight
837 lbs / 379.7 kg
View details

GrandStand® Stand-On Mowers Brochure

Fatigue-Reducing Suspension

The revolutionary Flex-Ride operator platform suspension* keeps operators fresh, resulting in less fatigue and higher productivity throughout the day. Best of all, the suspension system is self-compensating for operators of different sizes.

2-in-1 Versatility

Foldable operator platform instantly converts the machine to a walk-behind. It easily lowers back down when it’s time to ride, saving time and trailer space.

Stand-on Mower Productivity

The ability to turn easily, get in and out of tight spaces, and quickly get on and off the mower to pick up debris or move obstacles all contribute to less time spent per property. The exceptional visibility of the GrandStand protects the operator, the mower and the property. The operator is better able to steer clear of obstacles, identify upcoming changes in terrain and easily pass beneath overhanging branches.

Exclusive TURBO FORCE Deck

High-capacity TURBO FORCE decks deliver unsurpassed strength, a superior cut, and increased productivity in extreme mowing conditions. Equipped with a patented adjustable baffle, TURBO FORCE decks can be fine-tuned in order to conquer changing turf conditions.

Traction and Handling

The wide stance and optimal weight balance of the GrandStand enhance hillside stability and control. Because there are no restrictions to limit operator motion, operators can shift weight as needed to further enhance the performance of the machine.

Smarter design in a bull-nose bumper.

7-gauge bull-nose bumper not only protects against frontal impacts, but also contains an integral underskirt to minimize blowout of debris and dust. The bottom, leading edge of the deck is raised 1/4" (6 mm), allowing grass to stand more upright when entering the cutting chamber, ensuring a level cut. Leaf "plowing" during spring and fall clean-up also is significantly reduced.

Flat-free, semi-pneumatic caster tires

Flat-free, semi-pneumatic caster tires

Patented Adjustable Baffle

Allows operator to achieve maximum cutting performance by fine-tuning deck to conquer changing conditions, unique job sites or different times of the season. In extreme conditions, the baffle can be opened in order to conserve power and achieve faster mowing speeds. In less demanding conditions, the baffle can be closed to yield micro-sized particles and maximize discharge velocity.

Big on Features, Not Size

The GrandStand conserves space to get more machines on your trailer or allows for a smaller trailer and a lighter load. And the unique, foldable operator platform makes the product even more compact for transport or storage. Some property owners have negative reactions to larger, heavier-looking mowers, and are concerned that their lawns may be damaged. With the sleeker Toro GrandStand, that problem is eliminated.

Rubber Discharge Chute

High performance rubber discharge chute allows for close trimming without damaging chute or landscape structures. Patented design provides exceptional clipping dispersion.

The Industry's Toughest Spindle Assembly

Toro's rugged spindle assemblies survive impacts that would destroy lesser spindles. The cast iron housing, with a massive 9-3/8" (23.8 cm) diameter base, absorbs impact loads and distributes them across a broader area of the robust deck shell.

A Flat Crisp Cut with Precision Blades

(.250) thick precision blades resist flexing to provide a flat, crisp cut. High-strength, heat-treated alloy steel survives impacts and provides resistance to the rapid wear commonly associated with abrasive conditions. Options include Recycler®and Atomic®mulching blades, medium sail Bahai blades, and low sail sand blades.

Heavy-Duty Muffler Guard

Heavy-duty, 7-gauge muffler guard protects muffler against damage.
