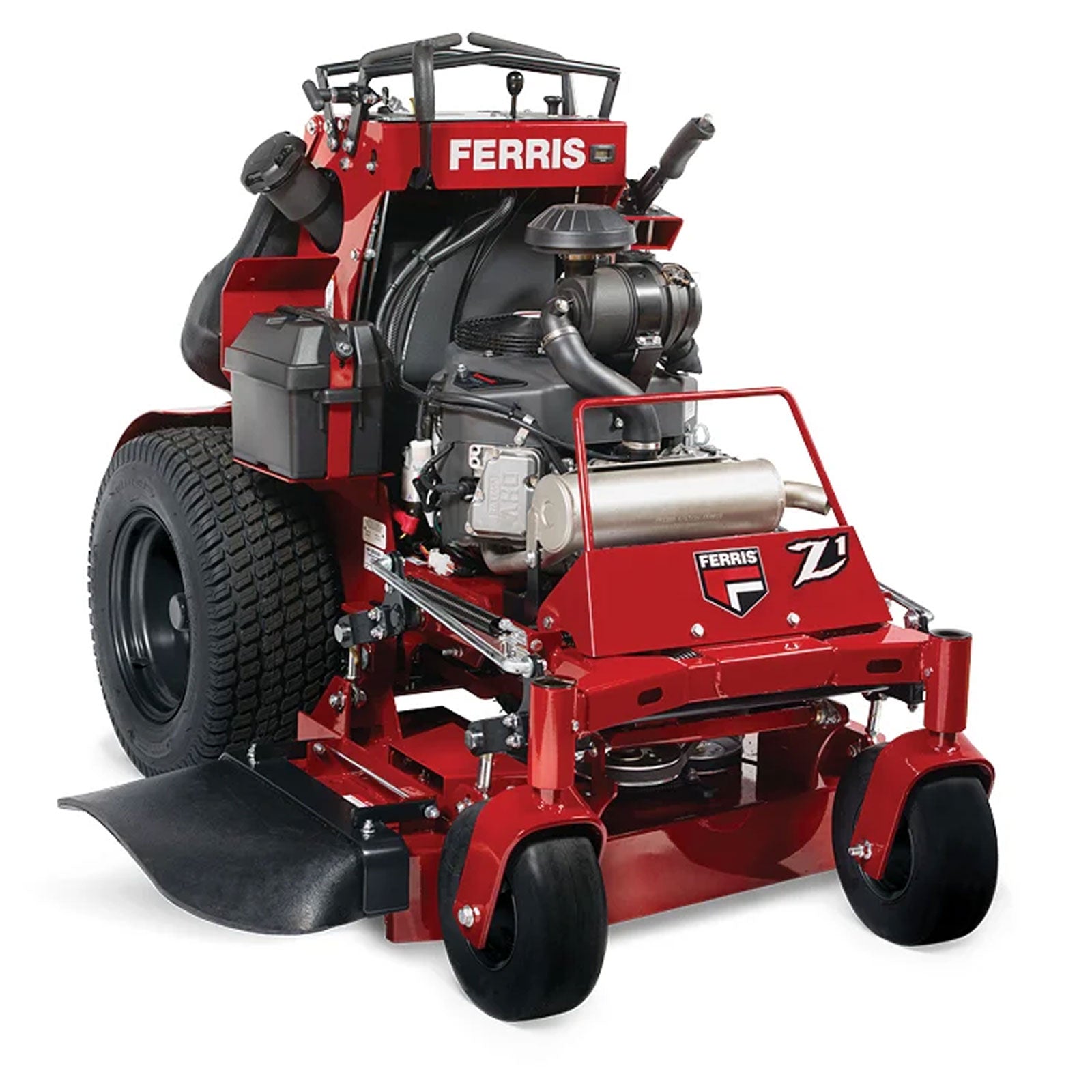

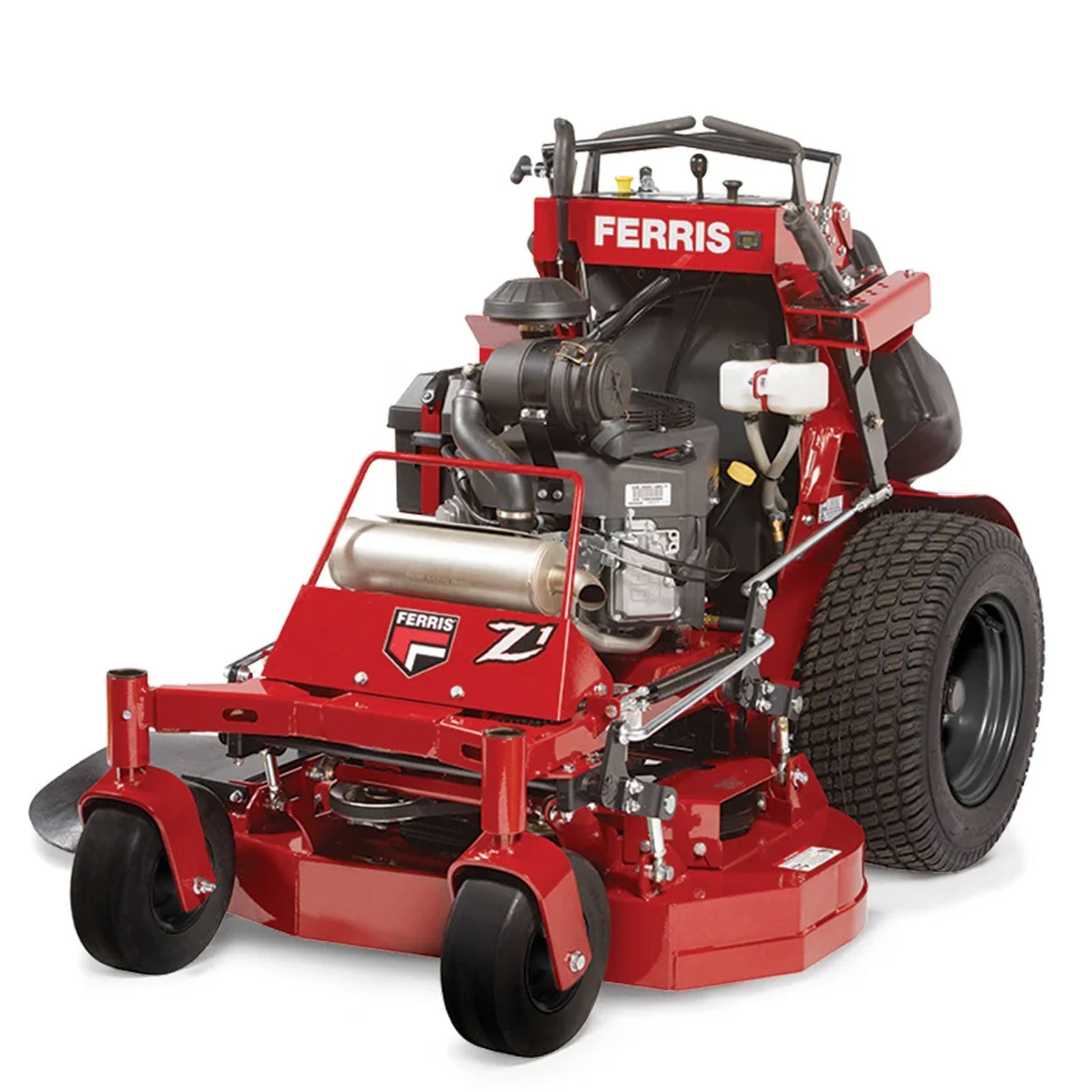

Ferris SRS Z1 48" 22 HP Soft Ride Stand-On Mower

By Ferris

$11,384.00 USD

Model

Description

Ideal for tight gates and smaller trailers the SRS Z1 offers excellent productivity in a compact frame. True to the Soft Ride Stand-on (SRS) series, the adjustable operator platform on the Z1 features suspension technology, improving operator comfort and performance.

Specifications

Model Number
5901940

Engine Brand
Kawasaki® FX691V

Horsepower
22 HP

Engine Displacement (cc)
726 cc

Number of Cylinders
2

Starter
Electric

Fuel Type
Gas

Transmission Type
Hydro-Gear® ZT-3400® transaxles with 7" cooling fans

Ground Speed – Forward (mph)
0–8 mph

Ground Speed – Reverse (mph)
0–4 mph

Parking Brake
Hand operated internal transaxle brake

Suspension
Adjustable coil-over shock, Operator Suspension Platform

Fuel Tank Capacity (gal)
6 gallons

Controls / Safety Group
Operator presence in platform, parking brake safety circuit for starting engine, automatic PTO restart

Hour Meter / Instrumentation
Dual-function hour meter, fuel level gauge

Deck Size (in)
48 in

Deck Construction
iCD™ Cutting System

Cutting Height (in)
1.75–4.5 in

Spindles
Aluminum greasable

Drive Tires (in)
23 x 10.5–12

Caster Tires
11 x 4–5

Overall Length (in)
65 in

Overall Width (in) Deflector Down / Deflector Up
59.5 in / 54 in

Dry Weight (lbs)
866 lbs

Warranty (Balance of Machine)
4-year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over shocks and all suspension related components covered for 6 years (60 months) unlimited hours. Transaxles covered for 3 years (36 months). See operator’s manual for full details.

Warranty (Engine)
3-year Manufacturer’s Limited Warranty (36 months)

View details

Ferris SRS Z1 48" 22 HP Soft Ride Stand-On Mower

Operator's Manual

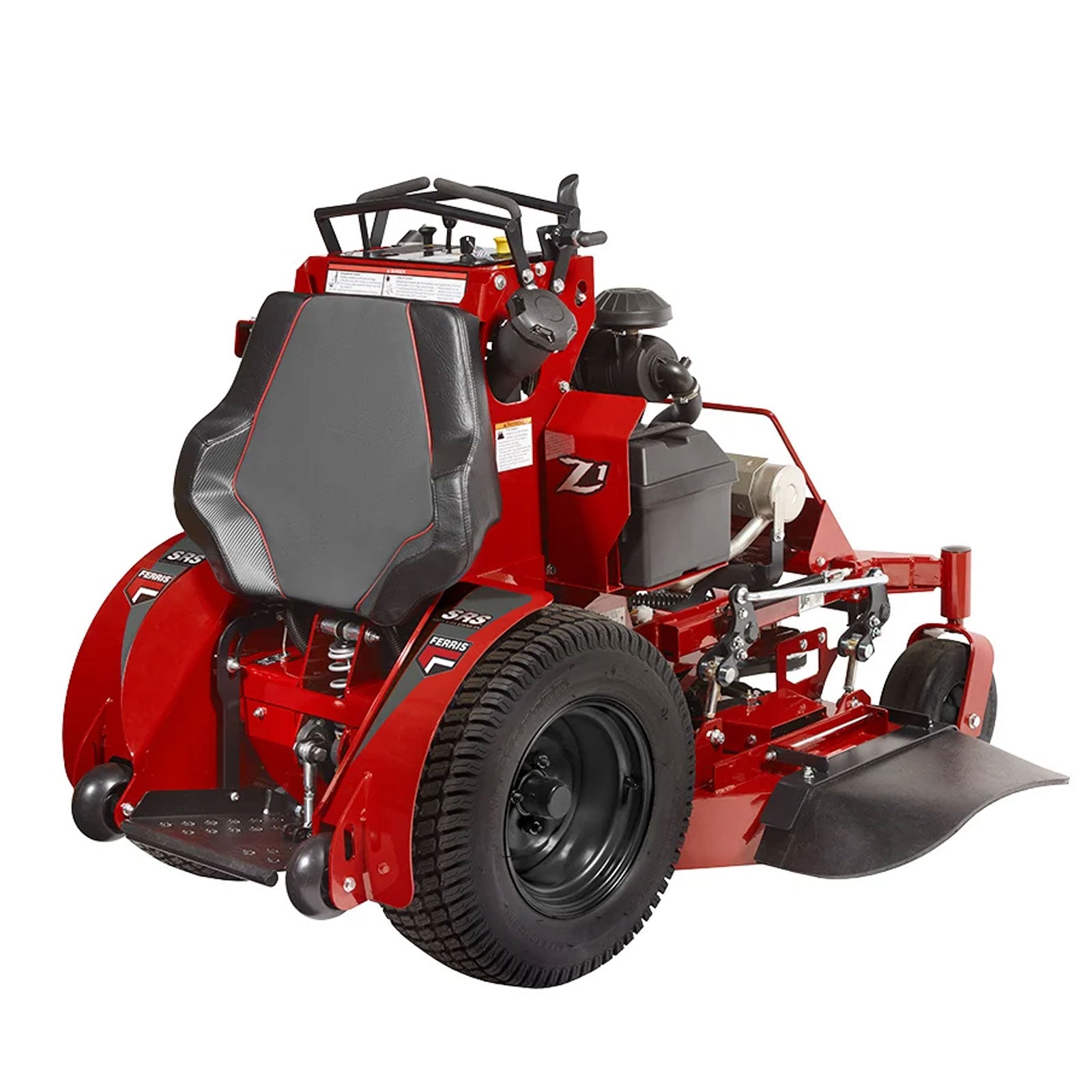

Suspension platform system
The suspension platform system is adjustable for a large range of weights and operating conditions, optimizing operator comfort and increasing productivity.

Adjustable height of cut
Height of cut is easily changed from the operator compartment for no hassle curb climbing and trailer loading. The hand-operated deck lift can change cut height in 1/4" increments from 1.75" - 4.5".

Speed control setting
The easy locking 3-position speed control setting is conveniently located and requires no tools to facilitate smooth operation in a wide range of conditions.

Standing comfort
Ergonomically designed thigh pad provides superior operator comfort and stability, especially on hilly terrain.

Integrated mowing transmissions
Commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans are designed for high performance and are fully serviceable.

ICD™ cutting system
Innovative ICD™ Cutting System was engineered to produce the best possible cut in a multitude of conditions.

Generous fuel capacity
A 6-gallon fuel tank is centrally located for consistent balance, and the fuel filler neck is conveniently located on the side for easy filling.
