ATS
SKU: RDT-CFNC-200ASEQS4

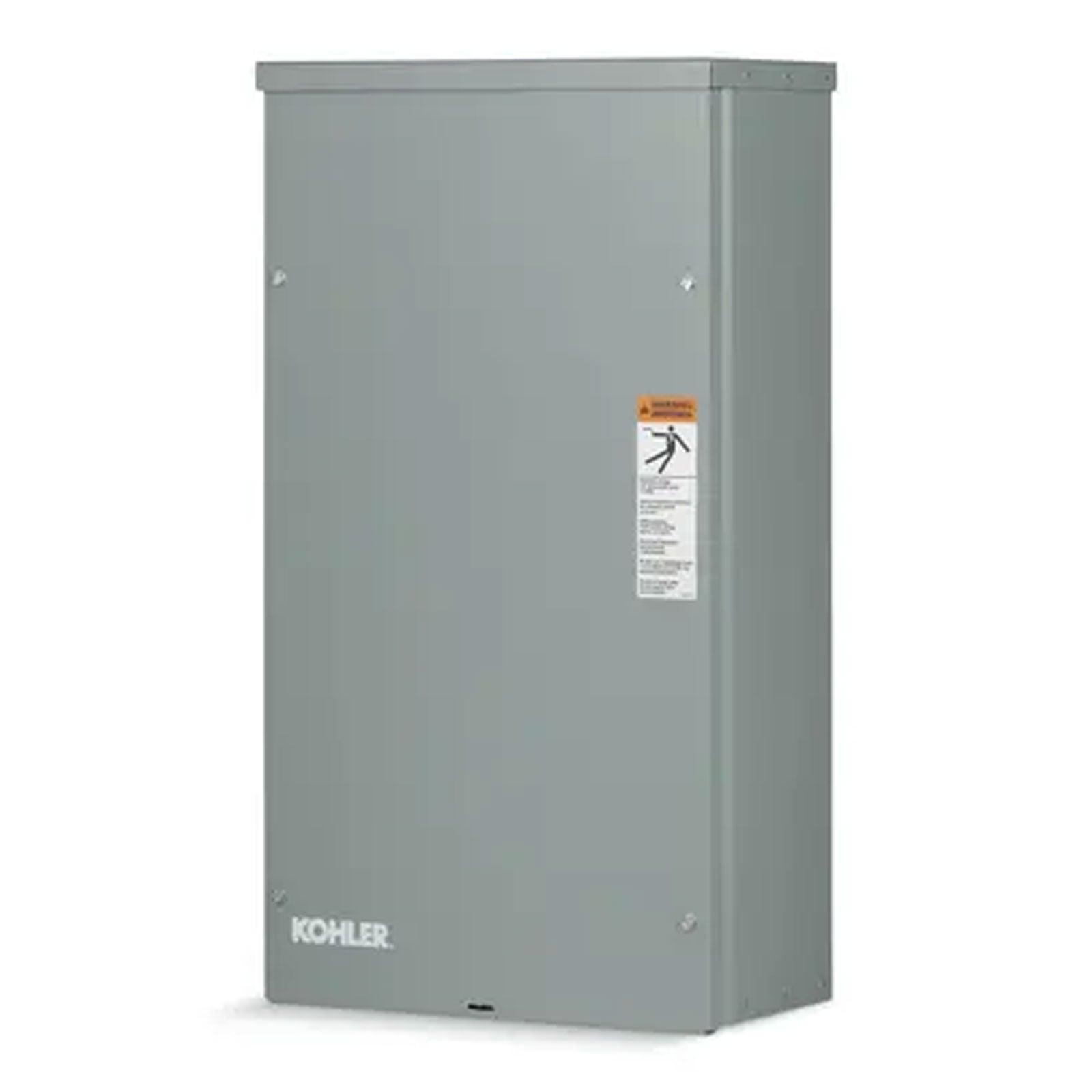

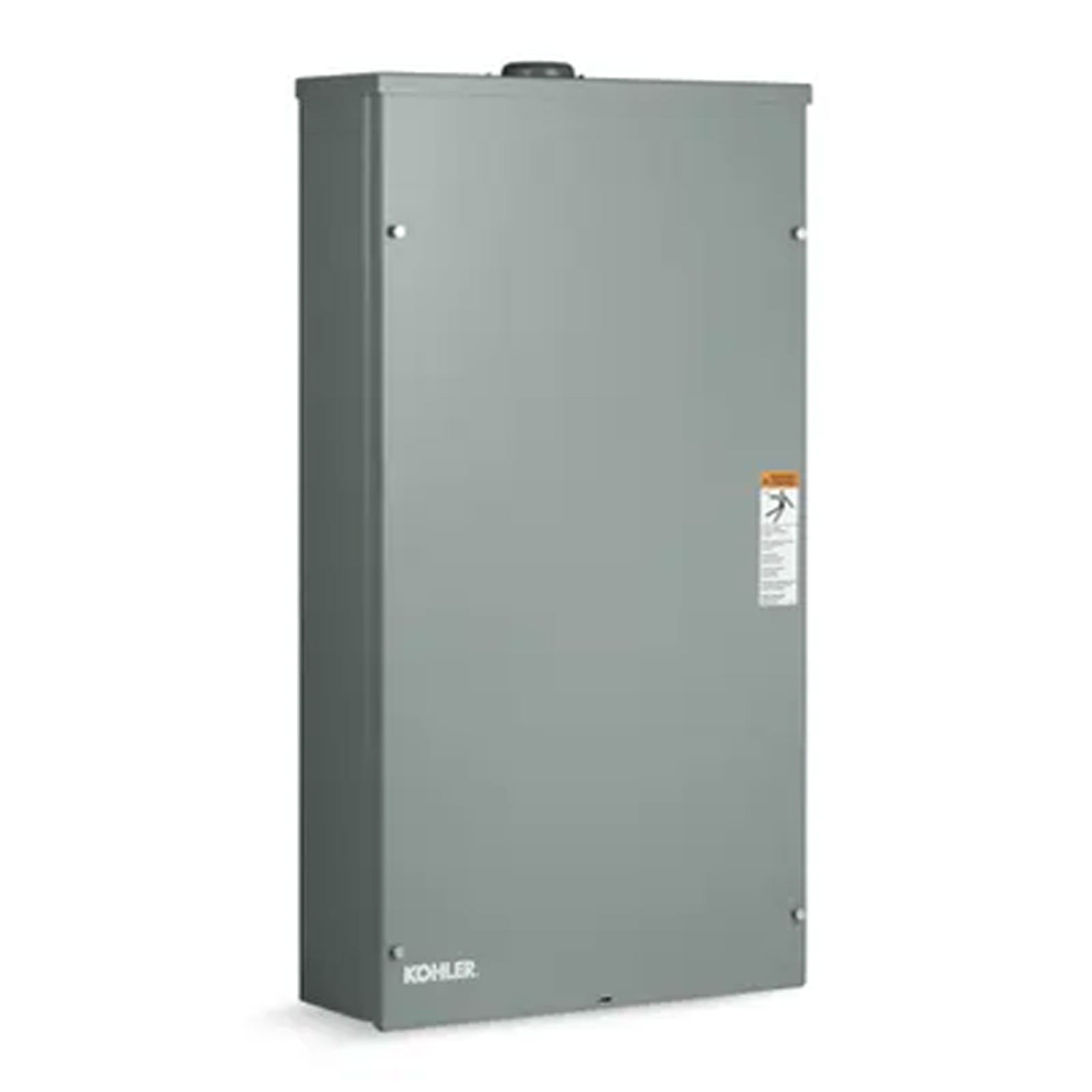

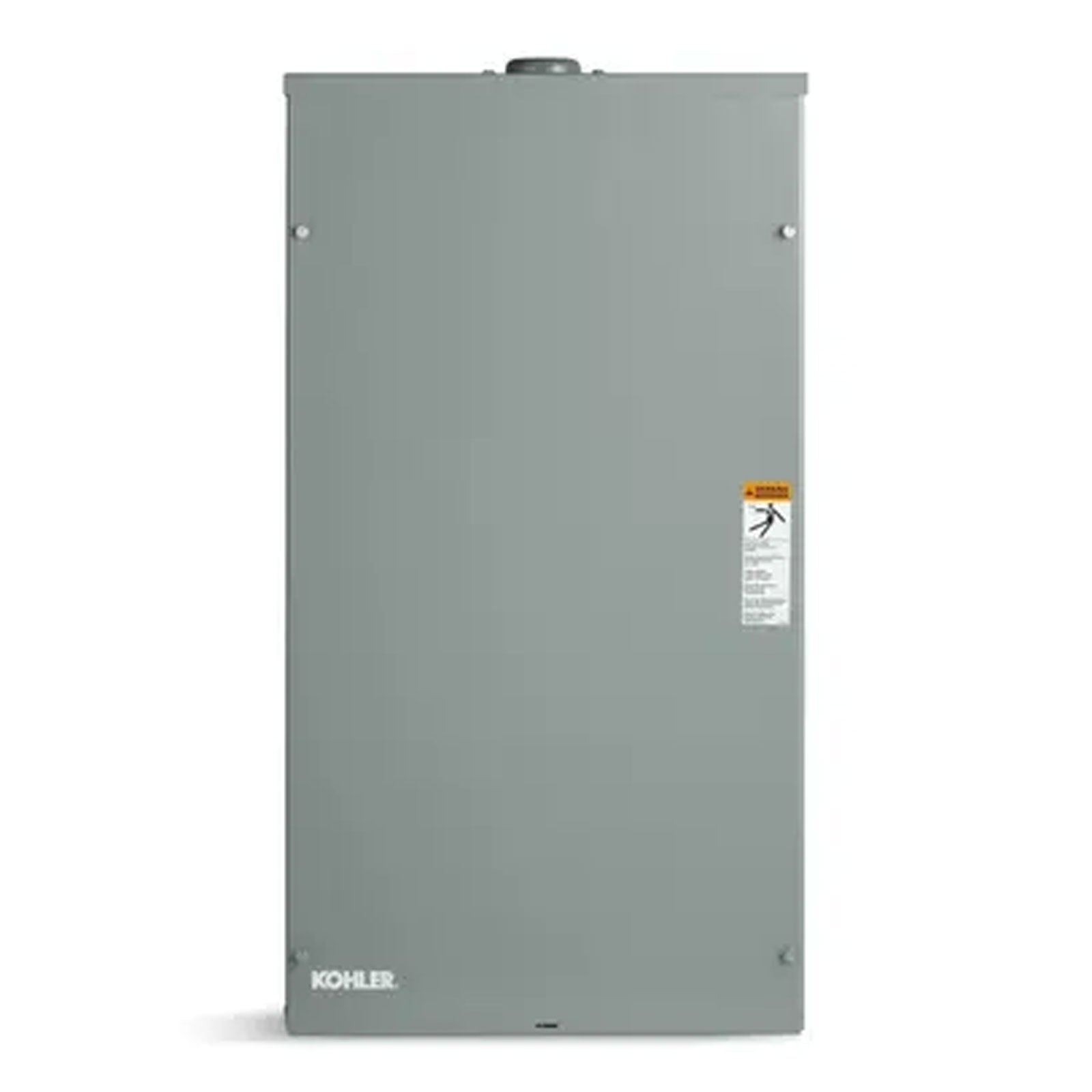

Kohler RDT 200 Amp Automatic Transfer Switch

By Kohler
$1,459.00 USD
Description

The Kohler RDT-CFNC-200ASEQS4 Automatic Transfer Switch is the control center behind a Kohler standby generator system, designed to manage power seamlessly during utility outages. The ATS continuously monitors incoming utility power and automatically transfers electrical load to the generator when an outage is detected, then safely returns power to the utility once service is restored.

Rated for 200-amp service entrance applications, this transfer switch is ideal for whole-home residential and small business standby systems. It integrates directly at the main service connection, simplifying installation while ensuring dependable power transfer and system protection.

The RDT-CFNC-200ASEQS4 is compatible with Kohler single-phase residential and small business generators and operates using an MPAC 500 controller. A user-friendly LED interface provides clear system status and supports quiet weekly generator exercise with complete system diagnostics.

Designed for flexibility, the corrosion-resistant aluminum enclosure is approved for indoor or outdoor installation, allowing the switch to adapt to a wide range of site conditions and existing electrical layouts. Optional load shedding and accessories are available to help manage electrical demand during generator operation.

The Kohler RDT-CFNC-200ASEQS4 Automatic Transfer Switch is a reliable, service-entrance solution engineered for safe, automatic, and dependable standby power operation.
Specifications

Amps
200

Phase
Single Phase

Voltage @ 60 Hz
240

Wires
3

Poles
2

Transfer Switch Type
Service Entrance

Load Center
Without Load Center

Generator Compatibility
All single-phase KOHLER residential and small business generators

Load Shedding
Optional

Load Control Time Delay
Yes

Enclosure Material
Aluminum

Enclosure Type
Indoor or Outdoor

Controller
MPAC 500

Position Indicating LEDs
Yes

Source Available Indicating LEDs
Yes

Accessory Board with Audible Alarm
Optional

External Alarm Module Available
Optional

Common / Fault Relay
Yes

All-In-One Distribution Panel and ATS
No

Weight
26 lbs (12 kg)

Dimensions
858 mm x 473 mm x 163 mm
(33.8 in x 18.6 in x 6.4 in)

Warranty
5-year limited warranty

Country of Origin
United States
View details

Specs Documentation

Automatic Utility Monitoring
The automatic transfer switch continuously monitors incoming utility power and detects outages instantly, ensuring the system is always ready to respond when power is lost.

Seamless Power Transfer
When an outage occurs, the ATS automatically transfers power from the utility to the standby generator and safely switches back once utility power is restored, with no manual intervention required.

200 Amp Service Entrance Rated
Designed for whole-home standby systems, the 200 amp service entrance rating supports residential electrical loads and integrates directly at the main service connection.

Kohler Generator Compatibility
Engineered for compatibility with Kohler single-phase residential and small commercial generators, ensuring reliable communication and dependable system performance.

Indoor or Outdoor Installation
The transfer switch is available in configurations suitable for indoor or outdoor installation, allowing flexibility based on site requirements and existing electrical layouts.

System Status and Diagnostics
A user-friendly LED display provides clear system status indicators and supports quiet weekly generator exercise with complete system diagnostics.
